vJSONRepeatTransform

Repeats an array in a line, circle, spiral or grid, with transforms spread across the copies.

AdvancedMograph / JSONJSONArrayScriptVal

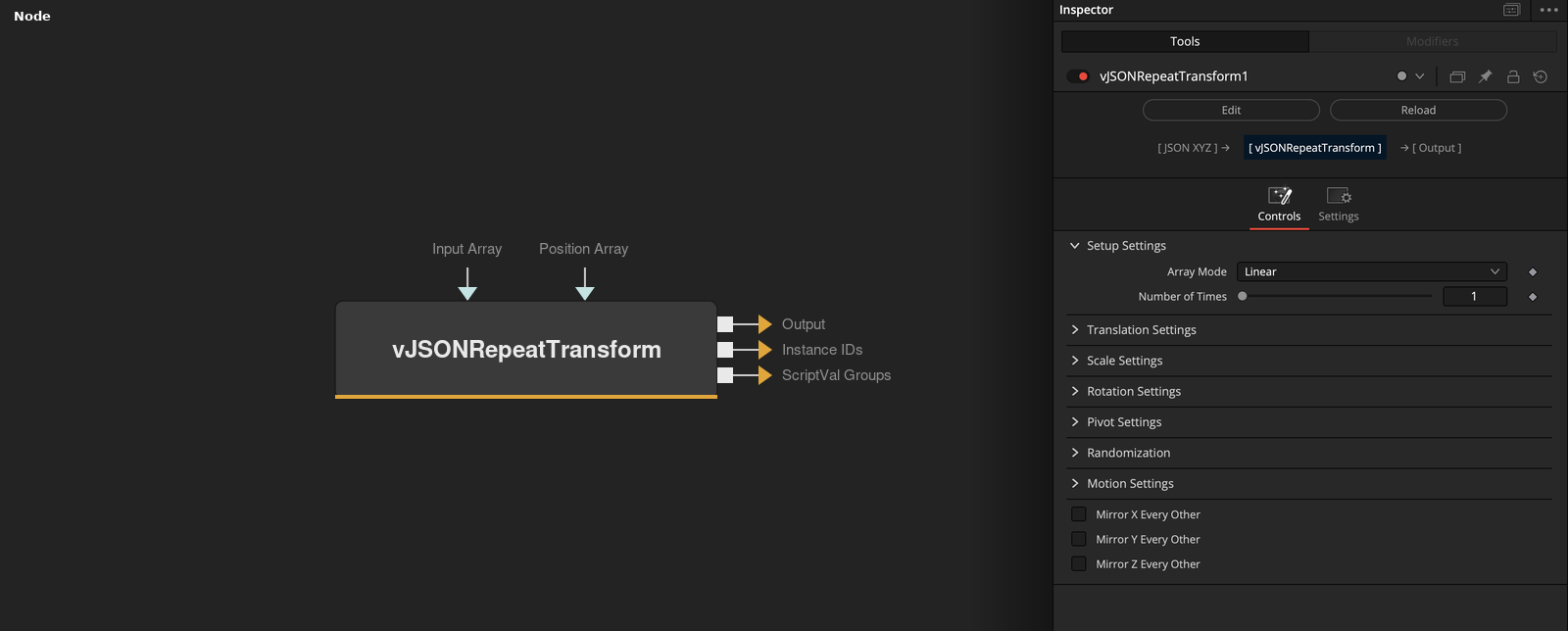

vJSONRepeatTransform takes an array of XYZ points and outputs copies of it. Array Mode places the copies, and the Translate, Scale and Rotation controls change them from the first copy to the last. A second output holds the copy number of each point.

Parameters

Parameter	Type	Default	Description
Array Mode	Dropdown	Linear	Linear (default), Circular, Spiral, Grid 2D or Grid 3D.
Number of Times	Integer	1	Number of copies in Linear, Circular and Spiral modes. Slider 1 to 100, default 1.
Radius	Float	0.1	Radius of the circle or spiral in XY. Slider 0 to 10, default 0.1. Shown for Circular and Spiral.
Spiral Height	Float	0.1	Rise on Z over all copies. Slider 0 to 10, default 0.1. Shown for Spiral.
Grid Columns (X)	Integer	2	Columns of the grid. Slider 1 to 20, default 2. Shown for the grid modes.

+39 more parameters

Parameter	Type	Default	Description
Grid Rows (Y)	Integer	2	Rows of the grid. Slider 1 to 20, default 2. Shown for the grid modes.
Grid Depth (Z)	Integer	3	Layers of the grid. Slider 1 to 20, default 3. Shown for Grid 3D.
Grid Spacing X	Float	0.1	Spacing along X. Slider 0 to 5, default 0.1. Shown for the grid modes.
Grid Spacing Y	Float	0.1	Spacing along Y. Slider 0 to 5, default 0.1. Shown for the grid modes.
Grid Spacing Z	Float	0.1	Spacing along Z. Slider 0 to 5, default 0.1. Shown for Grid 3D.
Translate X	Float	0	Total X translation reached at the last copy. Slider -10 to 10, default 0.
Translate Y	Float	0	Total Y translation reached at the last copy. Slider -10 to 10, default 0.
Translate Z	Float	0	Total Z translation reached at the last copy. Slider -10 to 10, default 0.
Scale X	Float	0	Added to the X scale factor of 1 at the last copy. Slider -1 to 1, default 0.
Scale Y	Float	0	Added to the Y scale factor of 1 at the last copy. Slider -1 to 1, default 0.
Scale Z	Float	0	Added to the Z scale factor of 1 at the last copy. Slider -1 to 1, default 0.
Rotation X	Float	0	Total rotation around X in degrees at the last copy. Slider -360 to 360, default 0.
Rotation Y	Float	0	Total rotation around Y in degrees at the last copy. Slider -360 to 360, default 0.
Rotation Z	Float	0	Total rotation around Z in degrees at the last copy. Slider -360 to 360, default 0.
Rotation Order	Dropdown	XYZ	Order in which the three rotations are applied, XYZ (default), YXZ, ZYX, XZY, YZX or ZXY.
Pivot X	Float	0	X of the pivot for rotation and scale. Slider -10 to 10, default 0.
Pivot Y	Float	0	Y of the pivot for rotation and scale. Slider -10 to 10, default 0.
Pivot Z	Float	0	Z of the pivot for rotation and scale. Slider -10 to 10, default 0.
Enable Random	Float	0	Turns on random variation per copy when on. Default off.
Random Seed	Integer	0	Integer, slider 0 to 1000, default 0.
Random Translate	Float	0	Random translation per copy, between minus and plus this value. Slider 0 to 5, default 0.
Random Rotate	Float	0	Random rotation per copy in degrees, between minus and plus this value. Slider 0 to 180, default 0.
Random Scale	Float	0	Random change of the scale factor per copy, between minus and plus this value. Slider 0 to 1, default 0.
Enable Shake	Float	0	Turns on the animated noise when on. Default off.
Position Amplitude	Float	0.0	Size of the position noise. Range 0 to 1, default 0.
Rotation Amplitude	Float	0.0	Size of the rotation noise, multiplied by 10 for degrees. Range 0 to 360, default 0.
Scale Amplitude	Float	0.0	Size of the scale noise. Range 0 to 1, default 0.
Frequency	Float	1.0	Frequency of the noise. Range 0.1 to 10, default 1.
Speed	Float	0.0	How fast the noise moves with the render time. Range 0 to 10, default 0.
Phase	Float	0.0	Start offset of the noise in degrees. Range 0 to 360, default 0.
Seed	Integer	0.0	Integer, range 0 to 1000, default 0.
Lag	Float	0.0	Smoothing of the shake over time. Range 0 to 1, default 0.
Cumulative Lag	Float	0.0	Smoothing where each copy follows the one before it. Range 0 to 1, default 0.
Reverse	Float	0.0	Makes each copy follow the one after it when on, with Cumulative Lag. Default off.
Mirror X Every Other	Float	0	Negates X for every second copy when on. Default off.
Mirror Y Every Other	Float	0	Negates Y for every second copy when on. Default off.
Mirror Z Every Other	Float	0	Negates Z for every second copy when on. Default off.
Input Array	Text	—	Points to repeat, or a flat list of numbers, three per point.
Position Array	Text	—	A flat list of numbers, three per copy, added to the copy positions.

Read the full description

The copies are Number of Times in Linear, Circular and Spiral modes, and Grid Columns times Rows (times Depth for Grid 3D) in the grid modes. Circular puts copies on a circle of Radius in XY, Spiral adds a rise of Spiral Height over the copies, and the grid modes center a grid with the spacings. Translate, Scale and Rotation are totals reached at the last copy, with copy j getting the share j / (Number of Times - 1) of them.

Each copy is rotated around the Pivot in the Rotation Order, scaled by 1 + Scale * share, and moved. Random adds seeded offsets per copy, Shake adds smoothed noise over time, and Mirror negates every second copy. Position Array adds three numbers per copy. The Instance IDs output holds the copy number of each point, and ScriptVal Groups the points per copy.

Example Connections

Repeat a shape in a circle and draw

vJSONPointsOnRectangle.Output -> vJSONRepeatTransform.InputArray
vJSONRepeatTransform.Output -> vJSONCameraProjection.ArrayA
vJSONCameraProjection.Output -> vJSONShapeRender.ArrayPoint
Background.Output -> vJSONShapeRender.Input

Use the groups to split the copies

vJSONPointsOnCircle.Output -> vJSONRepeatTransform.InputArray
vJSONRepeatTransform.Output -> vJSONCameraProjection.ArrayA
vJSONRepeatTransform.ScriptValGroups -> vJSONCameraProjection.ArrayGroups
