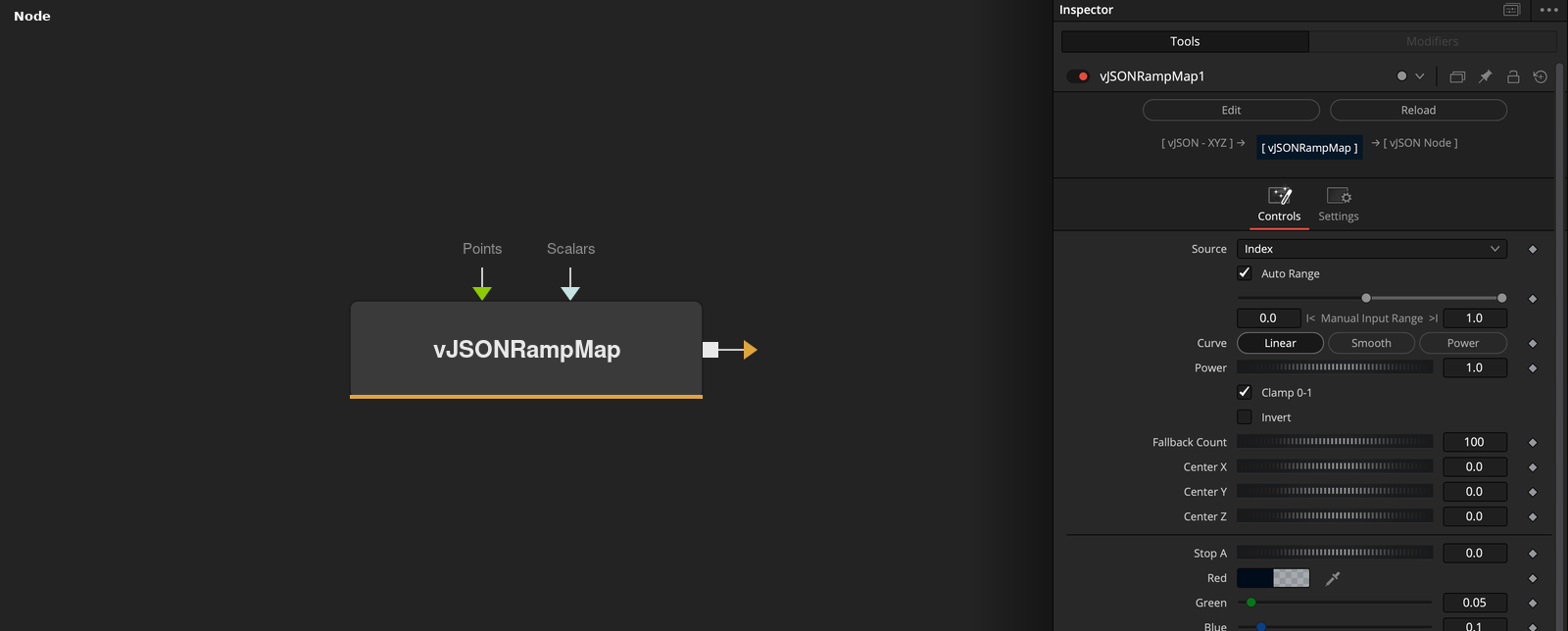

vJSONRampMap

Turns a number per point into a color from a ramp of four color stops.

IntermediateMograph / JSONJSONArrayScriptVal

vJSONRampMap reads a value for each index from the index, a scalar array, a point coordinate or the distance to a center, and outputs a list of RGBA colors from a four-stop ramp. Curve shapes the transition.

Parameters

Parameter	Type	Default	Description
Source	Dropdown	Index	Index (default), Scalar Input, Position X, Position Y, Position Z or Distance From Center. Position and distance sources give 0 without Points.
Auto Range	Integer	1.0	Uses the smallest and largest value as the range when on (default).
RangeMin	Float	0	Low end of the manual range. Used when Auto Range is off. Default 0.
RangeMax	Float	1	High end of the manual range. Used when Auto Range is off. Default 1.
Curve	Dropdown	Linear	Linear (default), Smooth or Power.

+29 more parameters

Parameter	Type	Default	Description
Power	Float	1	Exponent for the Power curve. Range 0.001 to 10, default 1.
Clamp 0-1	Integer	1.0	Limits the position to 0 to 1 when on (default).
Invert	Integer	0.0	Reverses the ramp when on. Default off.
Fallback Count	Integer	100	Number of colors when neither Points nor Scalars are connected. Range 1 to 1000, default 100.
Center X	Float	0	X of the center for Distance From Center. Default 0.
Center Y	Float	0	Y of the center for Distance From Center. Default 0.
Center Z	Float	0	Z of the center for Distance From Center. Default 0.
Pos	Float	0.0	Position of stop A on the ramp, 0 to 1. Default 0.
Red	Float	0.05	Red of stop A. Default 0.05.
Green	Float	0.10	Green of stop A. Default 0.1.
Blue	Float	0.35	Blue of stop A. Default 0.35.
Alpha	Float	1.0	Alpha of stop A. Default 1.
Pos	Float	0.33	Position of stop B on the ramp, 0 to 1. Default 0.33.
Red	Float	0.10	Red of stop B. Default 0.1.
Green	Float	0.55	Green of stop B. Default 0.55.
Blue	Float	0.85	Blue of stop B. Default 0.85.
Alpha	Float	1.0	Alpha of stop B. Default 1.
Pos	Float	0.66	Position of stop C on the ramp, 0 to 1. Default 0.66.
Red	Float	0.95	Red of stop C. Default 0.95.
Green	Float	0.72	Green of stop C. Default 0.72.
Blue	Float	0.20	Blue of stop C. Default 0.2.
Alpha	Float	1.0	Alpha of stop C. Default 1.
Pos	Float	1.0	Position of stop D on the ramp, 0 to 1. Default 1.
Red	Float	1.00	Red of stop D. Default 1.
Green	Float	0.20	Green of stop D. Default 0.2.
Blue	Float	0.10	Blue of stop D. Default 0.1.
Alpha	Float	1.0	Alpha of stop D. Default 1.
Points	DATATYPE	—	Optional points. They set the count and feed the position and distance sources.
Scalars	DATATYPE	—	Optional numbers. They feed the Scalar Input source.

Read the full description

The number of colors is the number of Points, else the number of Scalars, else Fallback Count (default 100). Source picks the value: the index, the Scalar Input value, Position X, Y or Z, or the distance to Center X, Y and Z. With Auto Range on, the smallest and largest value are the range, otherwise Range Min and Max are.

The position t is (value - min) / (max - min), clamped to 0 to 1 if Clamp 0-1 is on (default), flipped by Invert, then shaped by Curve: Linear, Smooth (smoothstep) or Power (t ^ Power). Each color is found on the ramp of stops A to D, which sit at Pos A to Pos D (defaults 0, 0.33, 0.66, 1). Below the first stop the color is A, above the last it is D, and in between it is blended linearly.

Example Connections

Color a grid by index and draw

vJSONPointsOnGrid.Output -> vJSONRampMap.Points
vJSONPointsOnGrid.Output -> vJSONCameraProjection.ArrayA
vJSONCameraProjection.Output -> vJSONShapeRender.ArrayPoint
vJSONRampMap.Output -> vJSONShapeRender.JSONCustomColor
Background.Output -> vJSONShapeRender.Input

Color by a scalar array

vJSONWeightMap.Output -> vJSONRampMap.Scalars
vJSONRampMap.Output -> vJSONShapeRender.JSONCustomColor
