vJSONParallelOffset
Builds parallel copies of a path at fixed distances on both sides.

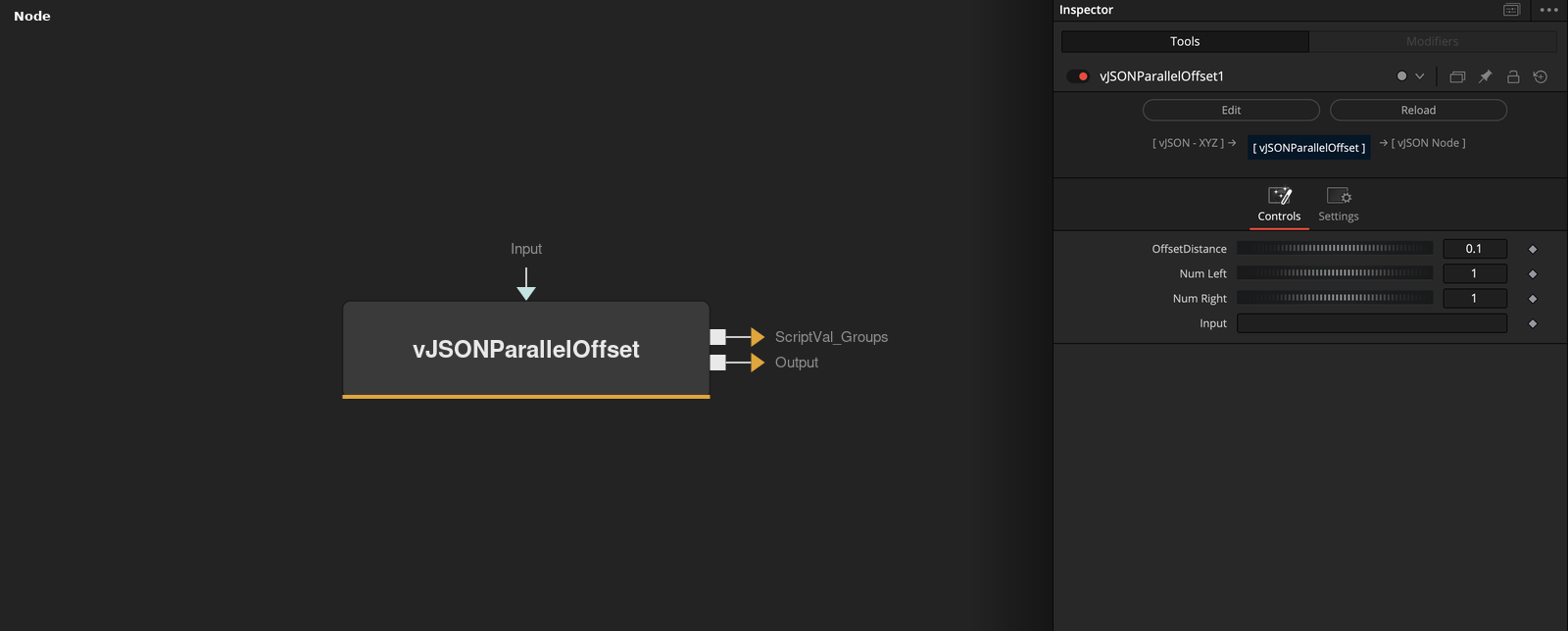

vJSONParallelOffset takes an array of path points and outputs the path followed by Num Left and Num Right offset copies of it. A second output lists the number of points of each curve.
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| OffsetDistance | Float | 0.1 | Distance between neighboring curves. Range 0.001 to 10, default 0.1. |
| Num Left | Integer | 1 | Number of curves on one side. Slider 1 to 10, default 1. |
| Num Right | Integer | 1 | Number of curves on the opposite side. Slider 1 to 10, default 1. |
| Input | DATATYPE | — | Path points, in order. |
Read the full description
Each offset copy moves every path point sideways by a multiple of Offset Distance. The i-th copy on a side is i * Offset Distance away. The sideways direction is perpendicular to the segment that starts at the point and lies in the XY plane, so a path in the XY plane stays in that plane. Num Left curves use one direction and Num Right curves the opposite one.
The Output holds the original path first, then the left copies, then the right copies, as one list. The ScriptVal_Groups output holds the point count of each curve in the same order, so the list can be split again. Offset Distance runs from 0.001 to 10 with a default of 0.1, and the counts default to 1.
Example Connections
- Offset an arc and draw the curves
- Offset a circle
vJSONPointsOnArc.Output -> vJSONParallelOffset.ArrayA
vJSONParallelOffset.Output -> vJSONCameraProjection.ArrayA
vJSONParallelOffset.ScriptVal_Groups -> vJSONCameraProjection.ArrayGroups
vJSONCameraProjection.Output -> vJSONShapeRender.ArrayPoint
Background.Output -> vJSONShapeRender.Input
vJSONPointsOnCircle.Output -> vJSONParallelOffset.ArrayA
vJSONParallelOffset.Output -> vJSONTranslate.Input
