vJSONLine

Generate evenly spaced points on a straight line between a start and an end position.

BeginnerMograph / JSONJSONArrayScriptVal

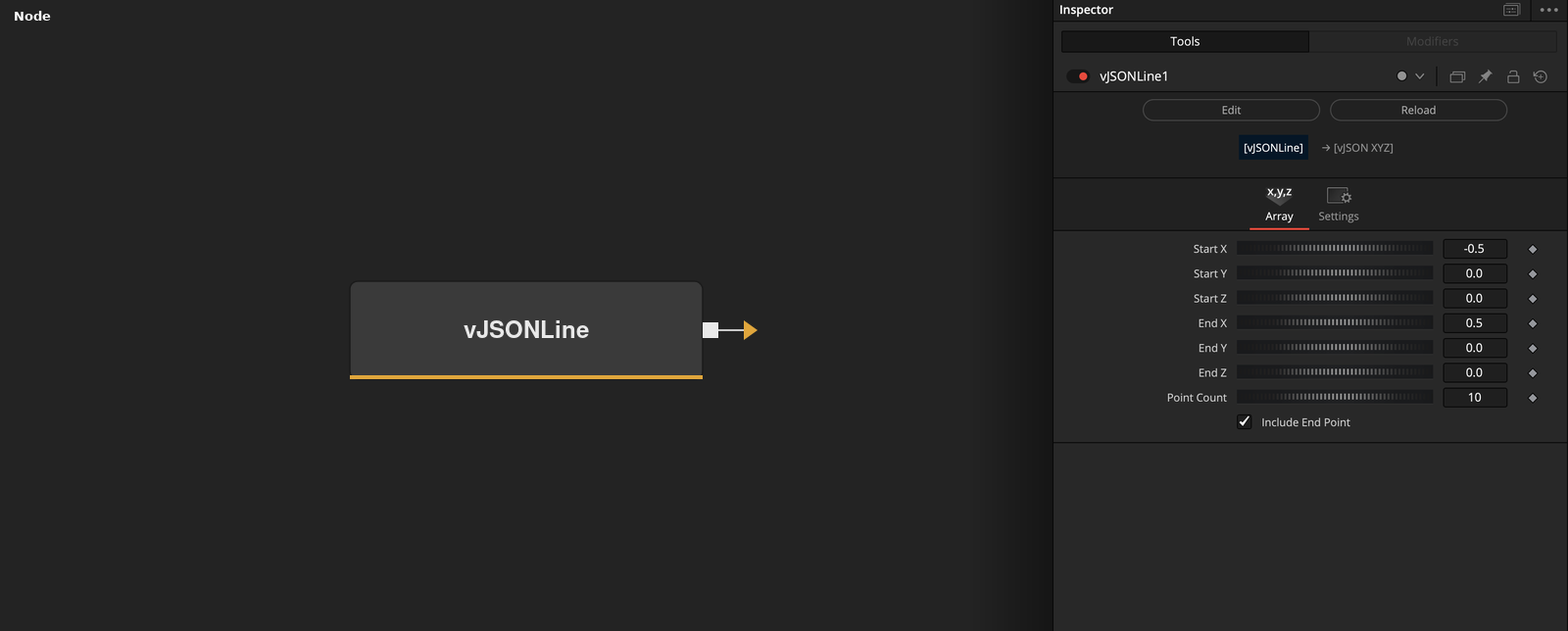

vJSONLine has no input and outputs an array of XYZ points between Start and End positions. Point Count sets how many points are written.

Parameters

Parameter	Type	Default	Description
Start X	Float	-0.5	X position of the first point. Default -0.5.
Start Y	Float	0	Y position of the first point. Default 0.
Start Z	Float	0	Z position of the first point. Default 0.
End X	Float	0.5	X position of the end of the line. Default 0.5.
End Y	Float	0	Y position of the end of the line. Default 0.

+3 more parameters

Parameter	Type	Default	Description
End Z	Float	0	Z position of the end of the line. Default 0.
Point Count	Integer	10	Number of points. Clamped to 2 or more, default 10.
Include End Point	Integer	1.0	When on, the last point lands on the end position. When off, the points stop one step before it. Default on.

Read the full description

For point i of n, the node uses t = i / (n - 1) and writes Start + (End - Start) * t on each of the three axes. The first point is at the start position and, with Include End Point on, the last point is at the end position.

With the defaults (Start -0.5, 0, 0, End 0.5, 0, 0, 10 points, Include End Point on) the node outputs ten points on the X axis from -0.5 to 0.5, 0.111 apart.

With Include End Point off, t is divided by n instead of n - 1. The spacing is then (End - Start) / n and the last point stops one step before the end position.

Point Count is clamped to 2 or more. The start and end positions are not limited. The output contains points only, with no edges.

Example Connections

Draw the line

vJSONLine.Output -> vJSONCameraProjection.ArrayA
vJSONCameraProjection.Output -> vJSONShapeRender.ArrayPoint
Background.Output -> vJSONShapeRender.Input

Animate the points with vArrayWave

vJSONLine.Output -> vJSONWave.ArrayA
vJSONWave.Output -> vJSONCameraProjection.ArrayA
