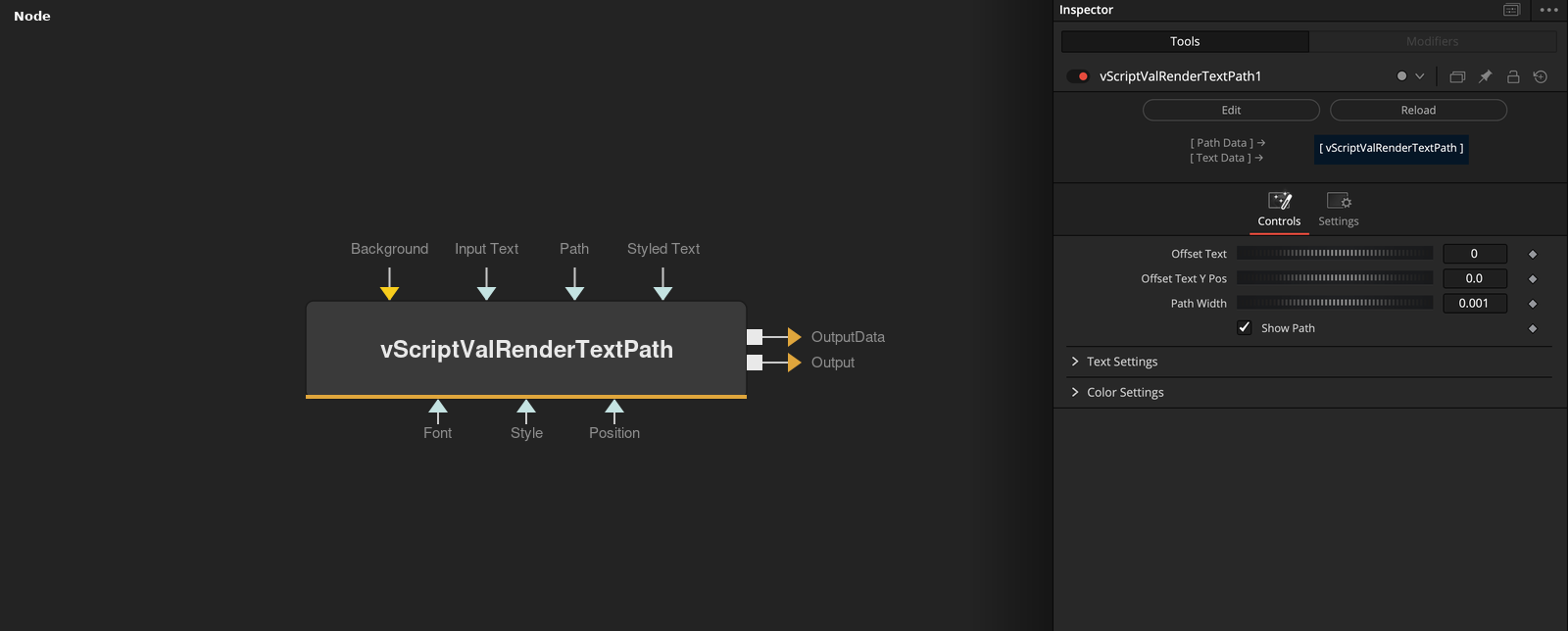

vScriptValRenderTextPath

Using Text and Strings on Array based Lua table of XY points path

Mograph / ScriptValScriptValArrayJSON

Parameters

Parameter	Type	Default	Description
Offset Text	Integer	0	Moves the text along the path.
Offset Text Y Pos	Float	0	Moves the text across the path.
Path Width	Float	0.001	Width of the path line.
Show Path	Integer	1	Draws the path.
Text Mode	Dropdown	Generate	Input text or Generate random text.

+28 more parameters

Parameter	Type	Default	Description
Generate Random →	Dropdown	Bool	Random text generator. Shown when Text Mode is Generate.
Array length	Integer	1	Number of generated items. Shown when Text Mode is Generate.
Seed	Float	0	Random seed. Shown when Text Mode is Generate.
Styled Text	Text	—	Text to place on the path. Shown when Text Mode is Input.
Font	Text	—	Font family.
Style	Text	—	Font style.
Size	Float	0.03	Text size.
Character Spacing	Float	0.02	Extra spacing between characters.
Letter Case	Dropdown	NONE	NONE, UPPER, or LOWER.
Justification	Dropdown	Center	Left, Center, or Right.
Horizontal Adjustment	Float	0.0	—
Vertical Adjustment	Float	0.0	—
Show Box Background	Integer	0.0	Draws a box behind each text item.
Box Padding	Float	0.5	Space between text and box. Shown with Show Box Background.
Box Vertical Adjustment	Float	0.0	Vertical box offset. Shown with Show Box Background.
Box Round Corners	Float	0.01	Corner radius of the box. Shown with Show Box Background.
Red	Float	1.0	Color for the text.
Green	Float	1.0	Color for the text.
Blue	Float	0.0	Color for the text.
Alpha	Float	1.0	Color for the text.
Red	Float	0	Color for the text.
Green	Float	0	Color for the text.
Blue	Float	0.3	Color for the text.
Alpha	Float	1.0	Color for the text.
Position	Point	—	—
Input	Image	—	Image that the result is drawn onto.
Input Text	Text	—	—
Path	ScriptVal	—	—

Example Connections

Example 1

vScriptValCircularPoints.Output -> vScriptValCameraProjection.ScriptVal
    vScriptValCameraProjection.Output -> vScriptValConvert2D_3D.ScriptVal
    vScriptValConvert2D_3D.Output -> vScriptValRenderTextPath.ScriptValpath
    Background.Output -> vScriptValRenderTextPath.Input
    vTextCreate.Output -> vScriptValRenderTextPath.inputtext
