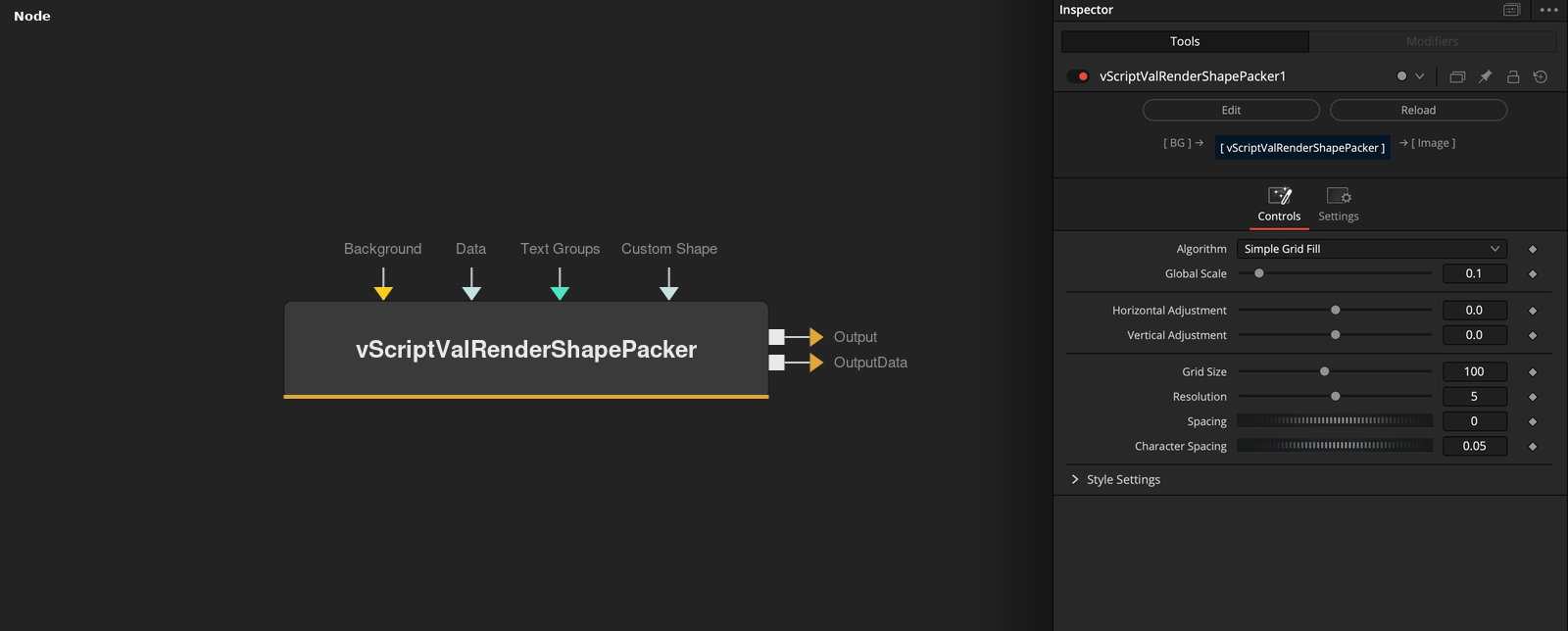

vScriptValRenderShapePacker
Fills a letter-shaped area with tightly packed shapes using multiple algorithms
Mograph / ScriptValScriptValArrayJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Algorithm | Dropdown | Simple Grid Fill | Simple Grid Fill, Ultra Simple Grid Fill, or Multi Size Grid Fill. |
| Global Scale | Float | 0.1 | Overall size. |
| Horizontal Adjustment | Float | 0.0 | Horizontal offset. |
| Vertical Adjustment | Float | 0 | Vertical offset. |
| Grid Size | Integer | 100 | Resolution of the fill grid. |
+16 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Resolution | Integer | 5 | Sampling resolution of the fill. |
| Spacing | Integer | 0 | Space between the packed items. |
| Character Spacing | Float | 0.05 | Extra spacing between characters. |
| Select Shape | Dropdown | Default | Default, Polygon, or Custom shape. |
| Sides | Integer | 6 | Sides of the polygon. |
| Radius | Float | 0.03 | Radius of the packed shapes. |
| Angle | Float | 0.0 | Rotation of the packed shapes. |
| Select Fill | Dropdown | Outline | Outline or Fill. |
| Thickness | Float | 0.02 | Line thickness. |
| Red | Float | 1.0 | Color for the shape. |
| Green | Float | 0.9 | Color for the shape. |
| Blue | Float | 0.6 | Color for the shape. |
| Input | Image | — | Image that the result is drawn onto. |
| Data | ScriptVal | — | Data to process. |
| Text Groups | ScriptVal | — | — |
| Custom Shape | ScriptVal | — | — |
