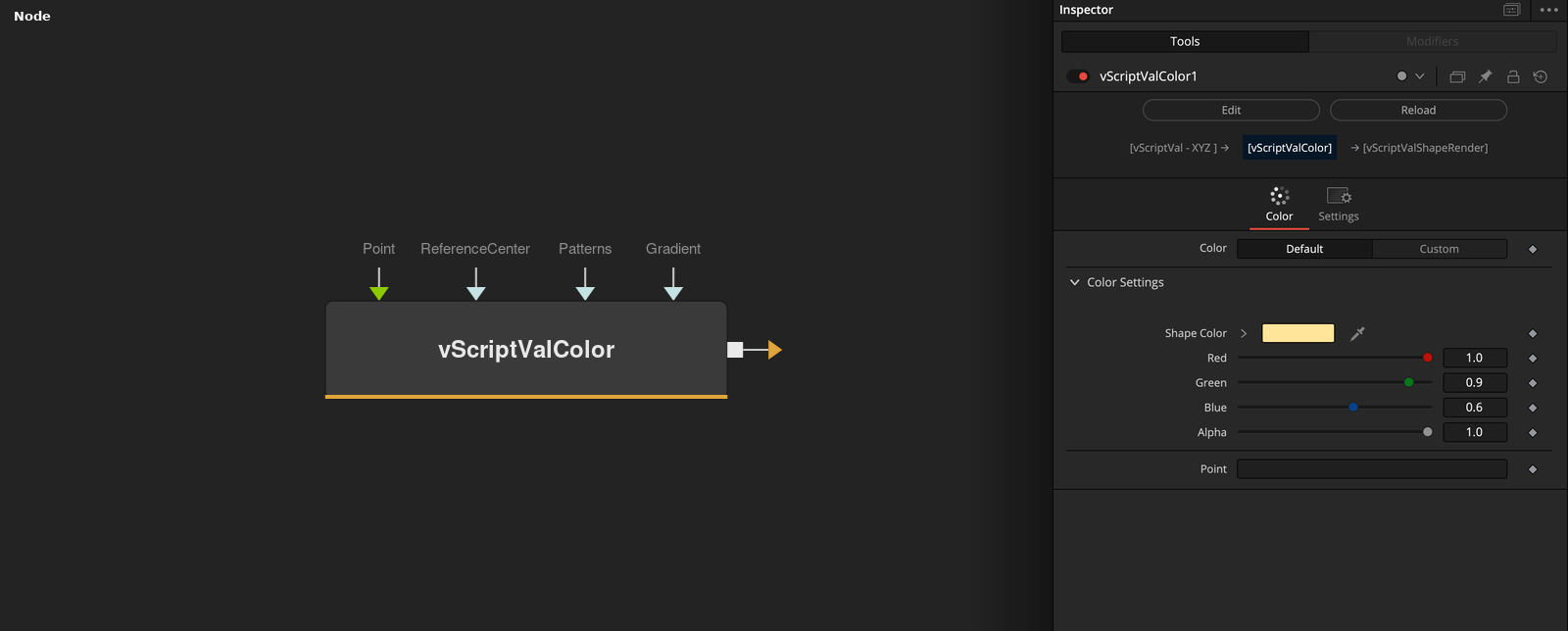

vScriptValColor
Dynamically color 2D Shape elements
Mograph / ScriptValScriptValArrayJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Color | Dropdown | Default | Default or Custom coloring. |
| Color By: | Dropdown | Index | Index, range mapping, spatial position, or a custom function. |
| ReferenceCenter | Point | — | Reference point for the spatial mode. |
| Max Color Distance | Float | 0.0 | Distance at which the spatial mapping ends. |
| Offset | Float | 0.0 | Shifts the gradient position. |
+15 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Scale | Float | 1 | Scales the gradient position. |
| Power | Float | 1.0 | Curve of the gradient position. |
| Repetitions | Integer | 1.0 | Number of times the gradient repeats. |
| Blend | Float | 0.0 | Blends between neighbouring colors. |
| Patterns | Text | — | Pattern text for the custom mapping. |
| Gradient | Gradient | — | Color gradient. |
| Low | Integer | 0 | — |
| High | Integer | 50 | — |
| Subdiv Color Range | Integer | 0 | Number of subdivisions of the color range. |
| Update UI Range | Float | — | — |
| Red | Float | 1.0 | Color for the custom. |
| Green | Float | 0.9 | Color for the custom. |
| Blue | Float | 0.6 | Color for the custom. |
| Alpha | Float | 1.0 | Color for the custom. |
| Point | ScriptVal | — | — |
