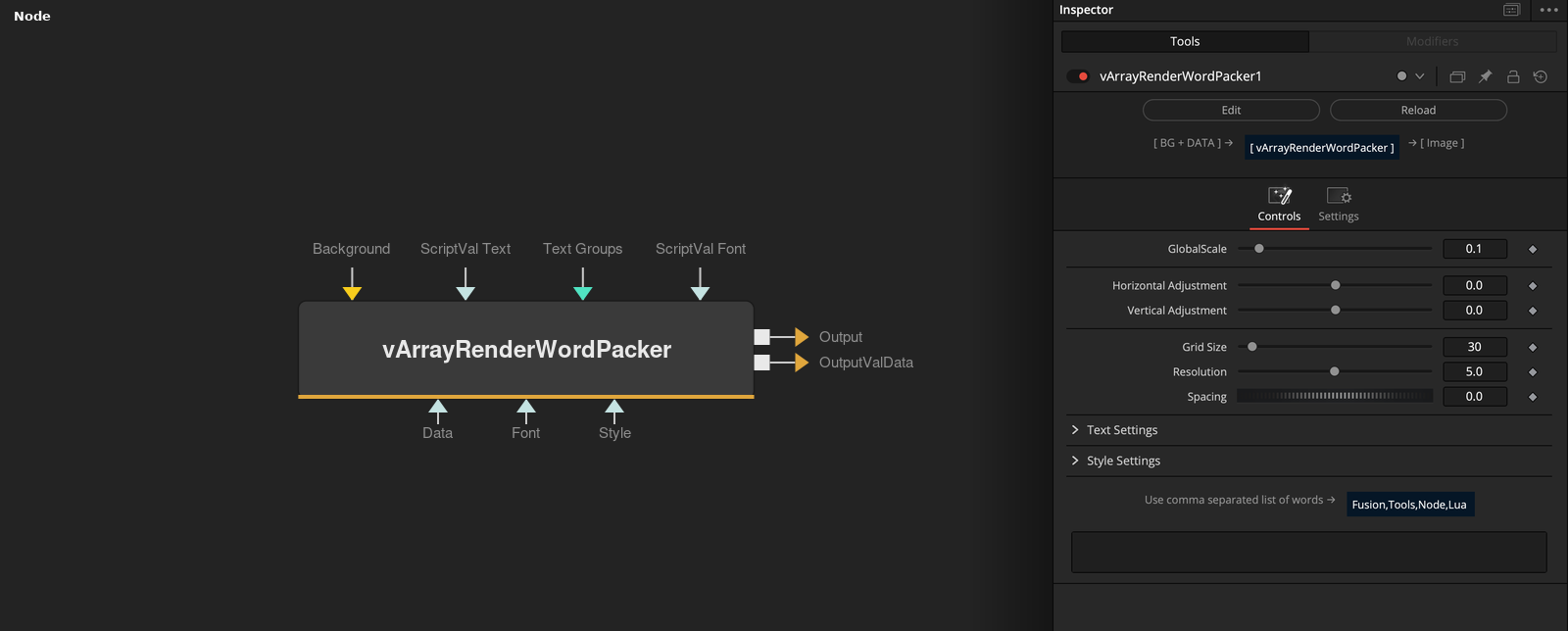

vArrayRenderWordPacker
Fills a letter shape with tightly packed text, using FitTo and custom algorithms
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| GlobalScale | Float | 0.1 | Overall size. |
| Horizontal Adjustment | Float | 0.0 | Horizontal offset. |
| Vertical Adjustment | Float | 0 | Vertical offset. |
| Number of Rectangles | Integer | 1000 | — |
| Grid Size | Integer | 30 | Resolution of the fill grid. |
+16 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Resolution | Float | 5 | Sampling resolution of the fill. |
| Spacing | Float | — | Space between the packed items. |
| Font Select | Dropdown | Use Font | Use Font, or Use Front Array (fonts from the font array input). |
| Font | Text | — | Font family. |
| Size | Float | 1.0 | Text size. |
| Style | Text | — | Font style. |
| Character Spacing | Float | 0.05 | Extra spacing between characters. |
| Fit Scale | Integer | 1 | Scales each word to fit. |
| Red | Float | 1.0 | Color for the text. |
| Green | Float | 0.9 | Color for the text. |
| Blue | Float | 0.6 | Color for the text. |
| Data | Text | — | Data to process. |
| Input | Image | — | Image that the result is drawn onto. |
| ScriptVal Text | ScriptVal | — | — |
| Text Groups | ScriptVal | — | — |
| ScriptVal Font | ScriptVal | — | — |
