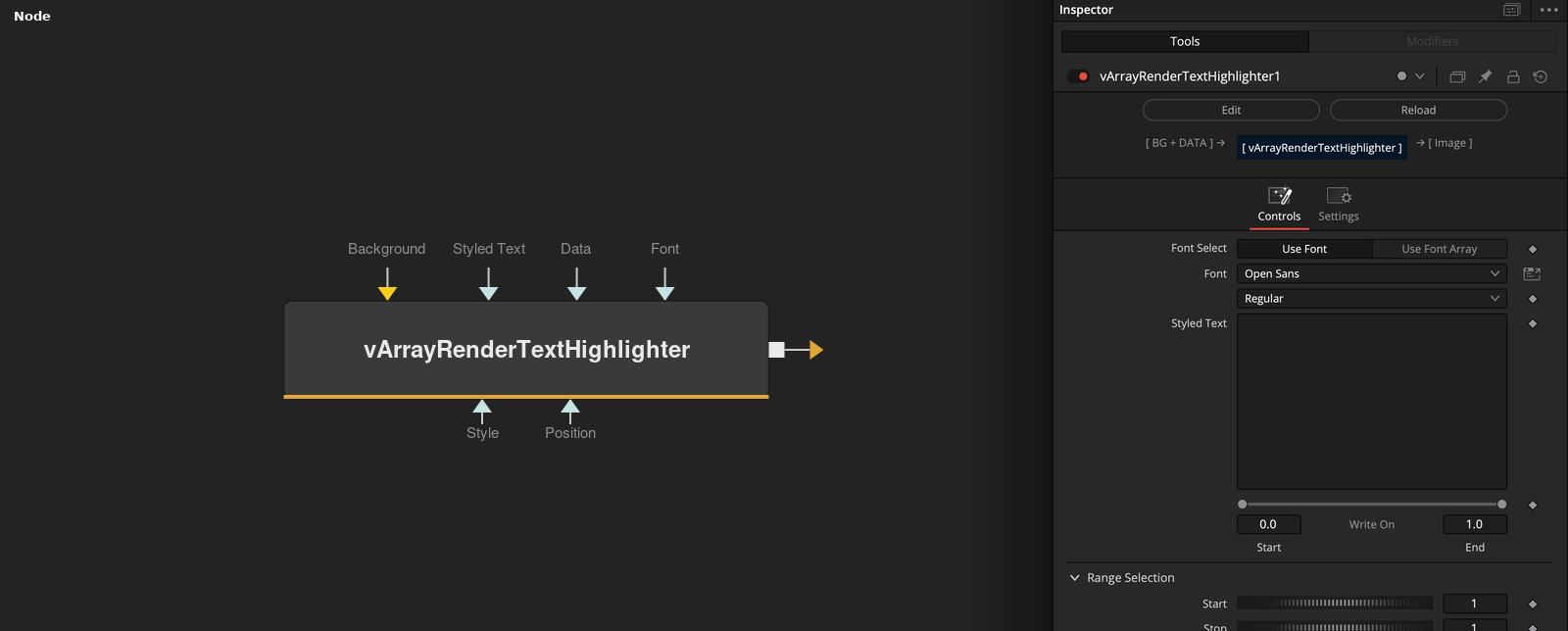

vArrayRenderTextHighlighter

Highlights text elements dynamically

Mograph / ArrayArrayScriptValJSON

Parameters

Parameter	Type	Default	Description
Font Select	Dropdown	Use Font	Use Font, or Use Front Array (fonts from the font array input).
Font	Text	—	Font family.
Style	Text	—	Font style.
Styled Text	Text	—	Text to highlight.
Start	Float	0	First entry of the range.

+29 more parameters

Parameter	Type	Default	Description
End	Float	1.0	Last character of the highlight range.
Start	Integer	1	First entry of the range.
Stop	Integer	1	Last word of the range.
Offset Range	Integer	0	Added to Start and Stop.
Letter Case	Dropdown	NONE	NONE, UPPER, or LOWER.
Size	Float	0.03	Text size.
Character Spacing	Float	0.0	Extra spacing between characters.
Line Spacing	Float	0.0	Extra spacing between lines.
Width	Float	0	—
Height	Float	0	—
Horizontal Justification	Dropdown	LEFT	—
Vertical Justification	Dropdown	TOP	—
Padding	Float	0.15	Space around the text.
Round Corners	Float	0.0	Corner radius of the boxes.
Padding Top-Bottom	Float	0.0	Vertical padding.
Padding Left-Right	Float	0.025	Horizontal padding.
Padding Y-Offset	Float	-0.002	Vertical offset of the box.
Red	Float	1.0	Color for the text.
Green	Float	1.0	Color for the text.
Blue	Float	1.0	Color for the text.
Alpha	Float	1.0	Color for the text.
Red	Float	0.0	Color for the text.
Green	Float	0.0	Color for the text.
Blue	Float	1.0	Color for the text.
Alpha	Float	1.0	Color for the text.
Draw on Transparent Background	Float	0	Draws on transparent black instead of the input image.
Position	Point	—	Position of the result.
Input	Image	—	Image that the result is drawn onto.
Data	ScriptVal	—	Data to process.
