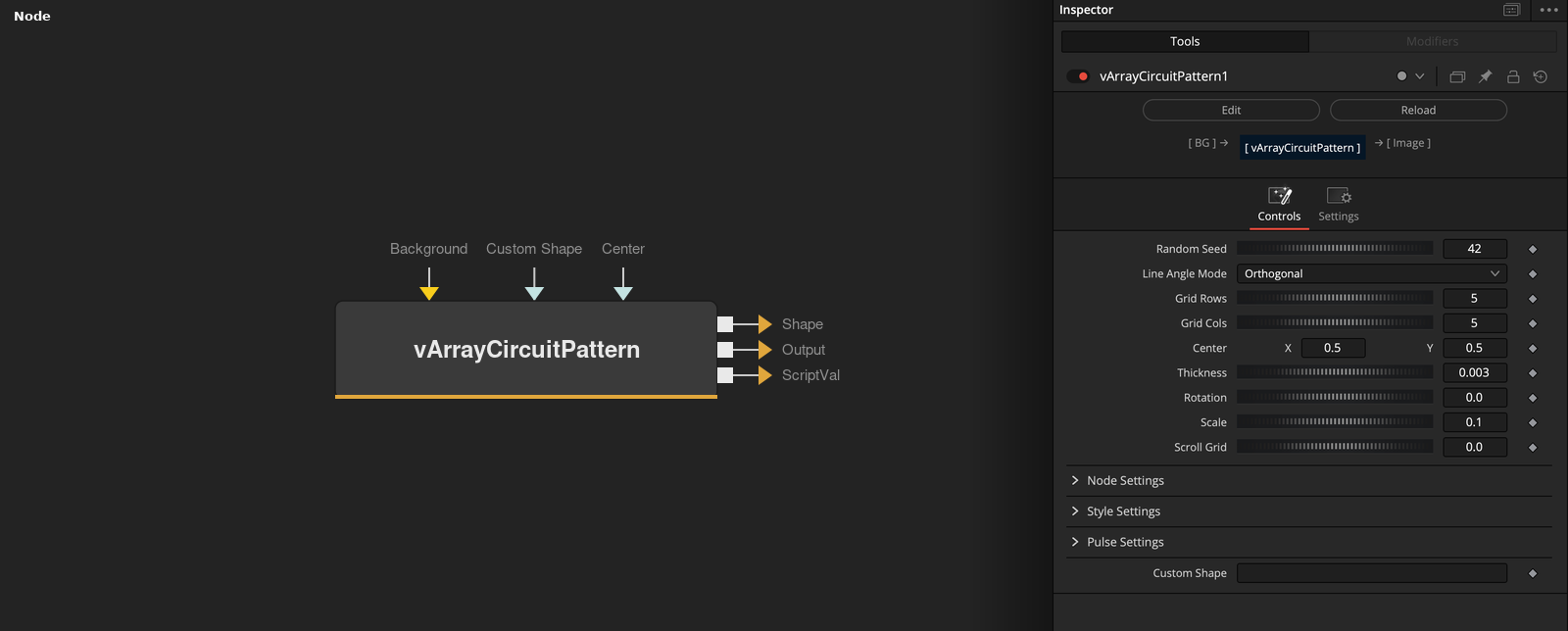

vArrayCircuitPattern

Generates a pattern circuit board with lines and components

Mograph / ArrayArrayScriptValJSON

Parameters

Parameter	Type	Default	Description
Random Seed	Integer	42	Seed of the random generator.
Line Angle Mode	Dropdown	Orthogonal	Orthogonal, 45 Degree, or Both.
Grid Rows	Integer	5	Rows of the grid.
Grid Cols	Integer	5	Columns of the grid.
Center	Point	—	Center position.

+27 more parameters

Parameter	Type	Default	Description
Thickness	Float	0.003	Line thickness.
Rotation	Float	0.0	Rotates the pattern.
Scale	Float	0.1	Size of the grid cells.
Scroll Grid	Float	0	Shifts the grid.
Show Nodes	Float	0	Draws a node at each point.
Show Nodes Outline	Float	1	Draws the nodes as outlines.
Input Source	Dropdown	Default	Default, Custom, or Random node shape.
Nodes Shape	Integer	1.0	Node shape number from 1 to 3.
Nodes Size	Float	1.0	Size of the nodes.
Nodes Thickness	Float	0.003	Outline thickness of the nodes.
Nodes Count	Integer	10	Number of nodes.
Red	Float	0.25	Color for the node.
Green	Float	0.57	Color for the node.
Blue	Float	0.96	Color for the node.
Filter	Dropdown	Gaussian	—
Soft Edge	Float	0	—
Line Type	Dropdown	Solid	Solid, Dash, Dot, Dash Dot, or Dash Dot Dot.
Join Type	Dropdown	2.0	Bevel or Round corners.
Show Pulse	Float	0	Draws a moving pulse along the lines.
Pulse Thickness	Float	0.002	Thickness of the pulse.
Pulse Speed	Float	0.0	Speed of the pulse.
Pulse Length	Float	0.1	Length of the pulse.
Red	Float	0.0	Color for the node.
Green	Float	0.0	Color for the node.
Blue	Float	0.75	Color for the node.
Input	Image	—	Image that the result is drawn onto.
Custom Shape	ScriptVal	—	—
