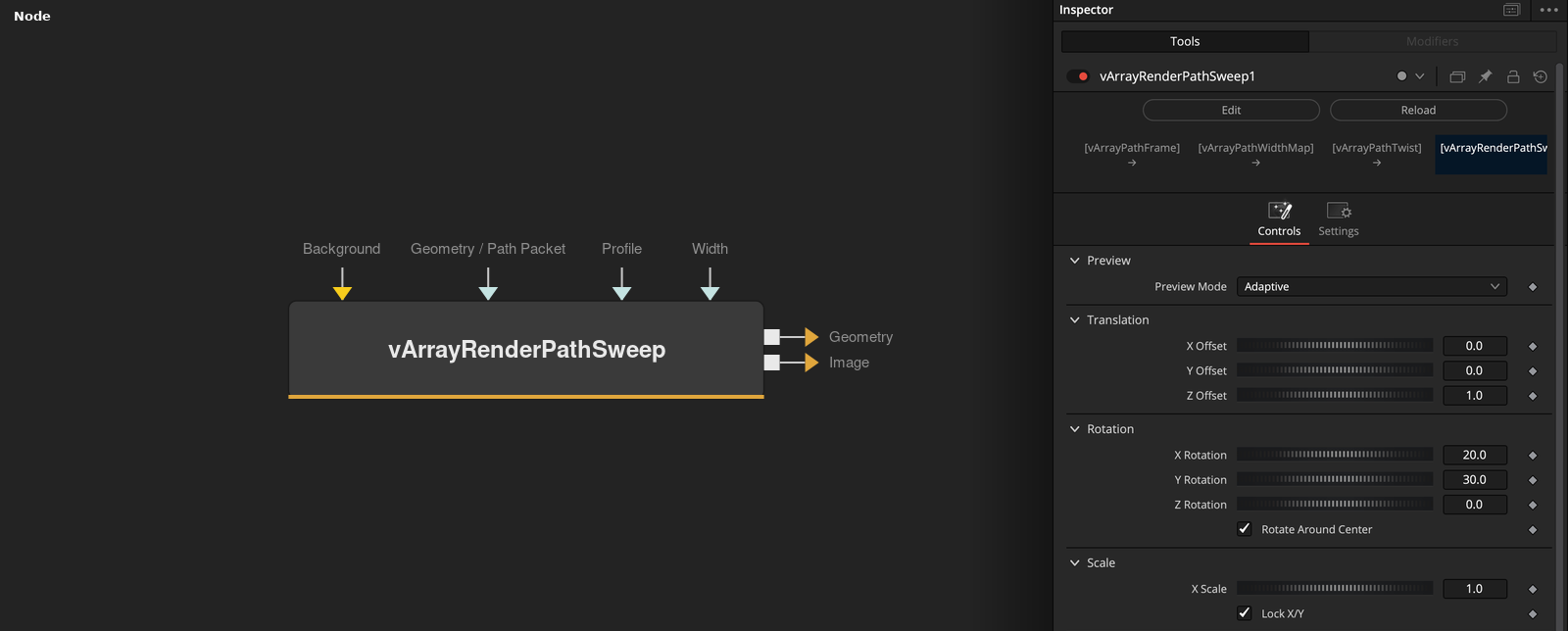

vArrayRenderPathSweep
Preview swept path/profile geometry as a 2D image while also outputting mesh data.
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Preview Mode | Dropdown | Adaptive | Adaptive, Ribbon, Tube, or Wireframe Only. |
| X Offset | Float | 0 | Moves the model along X. |
| Y Offset | Float | 0 | Moves the model along Y. |
| Z Offset | Float | 1.0 | Moves the model along Z, away from the camera. |
| X Rotation | Float | 20 | Rotation around X in degrees. |
+36 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Y Rotation | Float | 30 | Rotation around Y in degrees. |
| Z Rotation | Float | 0 | Rotation around Z in degrees. |
| Rotate Around Center | Integer | 1 | Rotates around the model center. |
| Lock X/Y | Integer | 1 | Uses one scale value for X and Y. |
| X Scale | Float | 1.0 | Scale of the model. |
| Y Scale | Float | 1.0 | Scale along Y. Shown when Lock X/Y is off. |
| Field of View | Float | 90.0 | Perspective field of view in degrees. |
| Aspect Ratio | Float | 16 / 9 | Aspect ratio used by the projection. |
| Profile Preset | Dropdown | Auto / External | Auto / External, Ribbon, Square, or Circle. |
| Preset Sides | Integer | 8 | Sides of the profile preset. |
| Close Profile | Integer | 1 | Connects the last profile point to the first. |
| Closed Path | Integer | 0 | Connects the last path point to the first. |
| Default Width | Float | 1 | Width used when no Width input is connected. |
| Show Fill | Integer | 1 | Draws the filled surface. |
| Show Wireframe | Integer | 1 | Draws the wireframe. |
| Show Center Path | Integer | 1 | Draws the center path. |
| Show Path Points | Integer | 0 | Draws the path points. |
| Wire Width | Float | 0.0015 | Width of the wireframe lines. |
| Path Width | Float | 0.001 | Width of the center path line. |
| Point Radius | Float | 0.004 | Radius of the path points. |
| Red | Float | 0.10 | Color for the fill. |
| Green | Float | 0.7 | Color for the fill. |
| Blue | Float | 1.0 | Color for the fill. |
| Alpha | Float | 0.15 | Color for the fill. |
| Red | Float | 0.0 | Color for the fill. |
| Green | Float | 1.0 | Color for the fill. |
| Blue | Float | 1.0 | Color for the fill. |
| Alpha | Float | 1.0 | Color for the fill. |
| Red | Float | 1.0 | Color for the fill. |
| Green | Float | 0.6 | Color for the fill. |
| Blue | Float | 0.0 | Color for the fill. |
| Alpha | Float | 1.0 | Color for the fill. |
| Background | Image | — | — |
| Geometry / Path Packet | INPUT_DATATYPE | — | — |
| Profile | INPUT_DATATYPE | — | — |
| Width | INPUT_DATATYPE | — | — |
