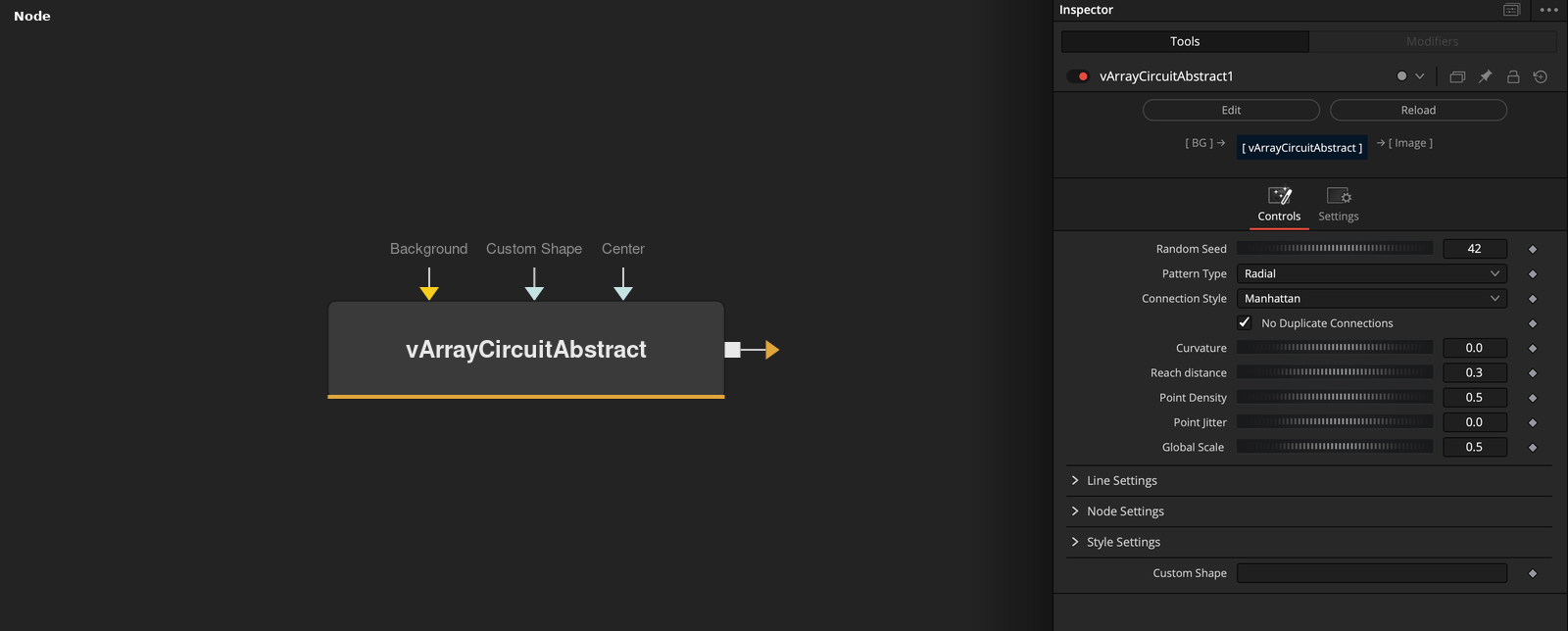

vArrayCircuitAbstract
Generates a abstract circuit board with lines and components
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Random Seed | Integer | 42 | Seed of the random generator. |
| Pattern Type | Dropdown | Radial | Radial, Grid, Organic, or Mixed point layout. |
| Connection Style | Dropdown | Manhattan | Shape of the connecting lines (Manhattan, Curved, Circular Arc, and others). |
| No Duplicate Connections | Float | 1.0 | Skips connections that already exist. |
| Curvature | Float | 0.0 | Amount of curve in curved connection styles. |
+22 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Reach distance | Float | 0.3 | Maximum distance of a connection. |
| Point Density | Float | 0.5 | Number of points. |
| Max Connections | Integer | 4 | — |
| Point Jitter | Float | 0.0 | Random offset of the points. |
| Center | Point | — | — |
| Global Scale | Float | 0.5 | Overall size. |
| Line Thickness | Float | 0.003 | Thickness of the circuit lines. |
| Growth Iterations | Integer | 1 | Number of times extra connections are added. |
| Trim Factor | Float | 0.3 | Share of connections removed. |
| Trace Red | Float | 0.2 | — |
| Trace Green | Float | 0.8 | — |
| Trace Blue | Float | 1.0 | — |
| Show Nodes | Float | 0 | Draws a node at each point. |
| Node Shape | Dropdown | Circle | Circle, Square, Triangle, or Custom. |
| Node Size | Float | 0.02 | Size of the nodes. |
| Node Red | Float | 0.1 | — |
| Node Green | Float | 0.9 | — |
| Node Blue | Float | 1.0 | — |
| Line Type | Dropdown | Solid | Solid, Dash, Dot, Dash Dot, or Dash Dot Dot. |
| Join Type | Dropdown | 2.0 | Bevel or Round corners. |
| Input | Image | — | Image that the result is drawn onto. |
| Custom Shape | ScriptVal | — | — |
