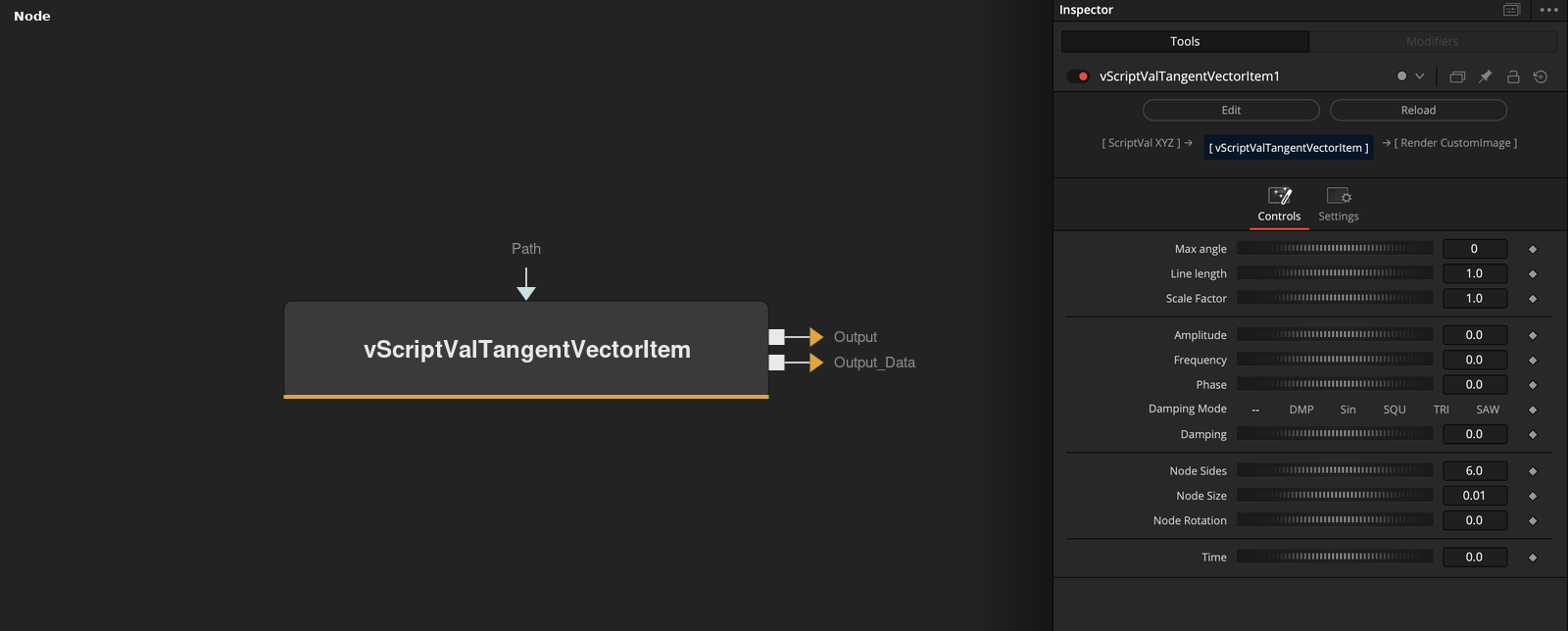

vScriptValTangentVectorItem

Create a vector that is tangent to a curve or surface at a given point

Mograph / ScriptValScriptValArrayJSON

Parameters

Parameter	Type	Default	Description
Max angle	Integer	0	Rotates each tangent by this angle.
Line length	Float	1	Base length of each tangent.
Scale Factor	Float	1	Multiplies the length.
Amplitude	Float	0	Strength of the wave added to the length.
Frequency	Float	0	Frequency of the wave.

+8 more parameters

Parameter	Type	Default	Description
Phase	Float	0	Phase of the wave.
Damping Mode	Dropdown	--	--, DMP (damped sine), Sin, SQU (square), TRI (triangle), or SAW (sawtooth).
Damping	Float	0	Decay rate for DMP.
Node Sides	Float	6	Sides of the polygon at the tangent end.
Node Size	Float	0.01	Size of the polygon.
Node Rotation	Float	0	Rotation of the polygon.
Time	Float	0	Time value that drives the wave.
Path	DATATYPE	—	—

Example Connections

Example 1

vScriptValLogarithmicSpiral.Output -> vScriptValCameraProjection.ScriptVal
    vScriptValCameraProjection.Output -> vScriptValTangentVectorItem.ScriptVal1
    vScriptValTangentVectorItem.Output -> vScriptValShapeRender.ScriptValShape
    vScriptValCameraProjection.Output -> vScriptValShapeRender.ScriptValPoint
    Background.Output -> vScriptValShapeRender.Input

Related Nodes

vScriptValLogarithmicSpiralvScriptValCameraProjectionvScriptValShapeRender
