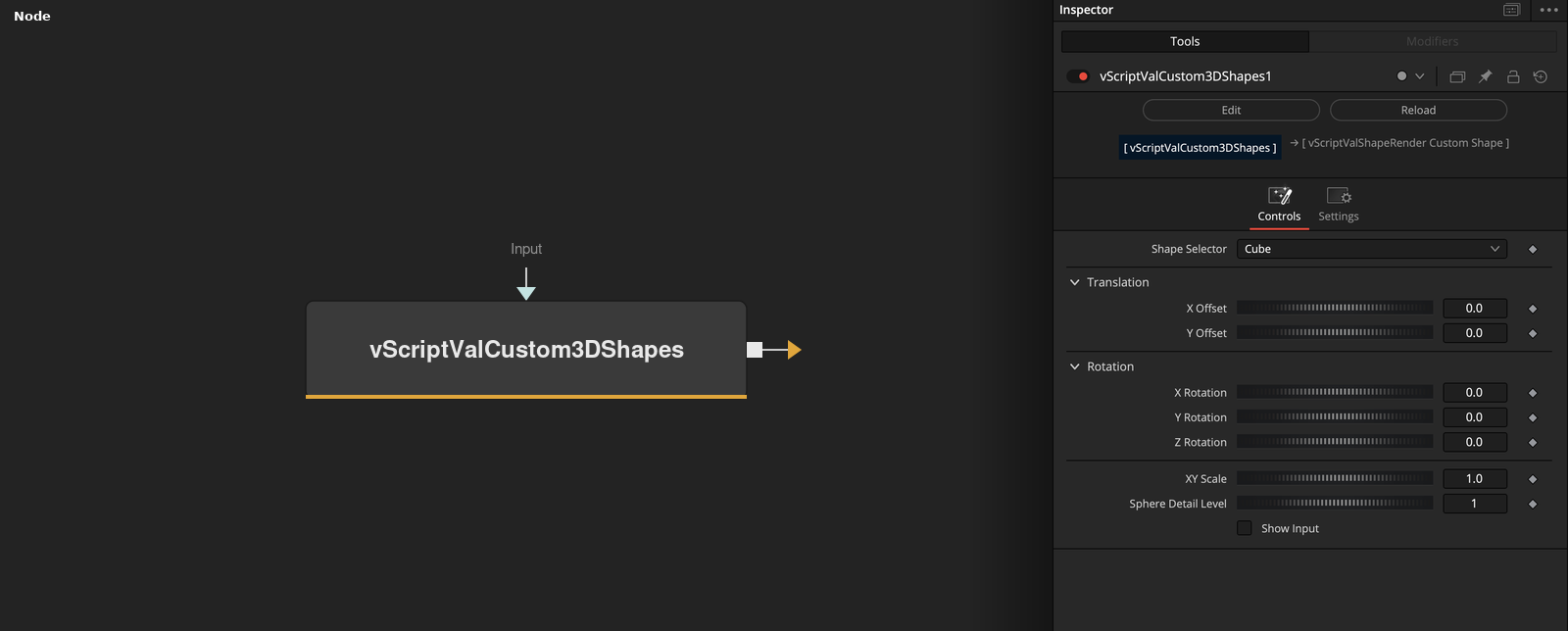

vScriptValCustom3DShapes
Dynamically create Shape elements
Mograph / ScriptValScriptValArrayJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Shape Selector | Dropdown | Cube | None, Cube, Tetrahedron, Octahedron, Dodecahedron, or Sphere. |
| X Offset | Float | — | — |
| Y Offset | Float | — | Moves the shape along X and Y. |
| Z Offset | Float | — | — |
| X Rotation | Float | — | — |
+6 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Y Rotation | Float | — | — |
| Z Rotation | Float | — | Rotates the shape. |
| XY Scale | Float | 1.0 | Uniform scale. |
| Sphere Detail Level | Integer | 1.0 | Number of subdivisions of the sphere. |
| Input | DATATYPE | — | Data to process. |
| Show Input | Integer | 0.0 | Shows the transform input sockets on the node. |
Example Connections
- Example 1
vScriptValPointsOnCircle.Output -> vScriptValCameraProjection.ScriptVal
vScriptValCameraProjection.Output -> vScriptValShapeRender.ScriptValPoint
vScriptValCustom3DShapes.Output -> vScriptValShapeRender.ScriptValShape
Background.Output -> vScriptValShapeRender.Input
