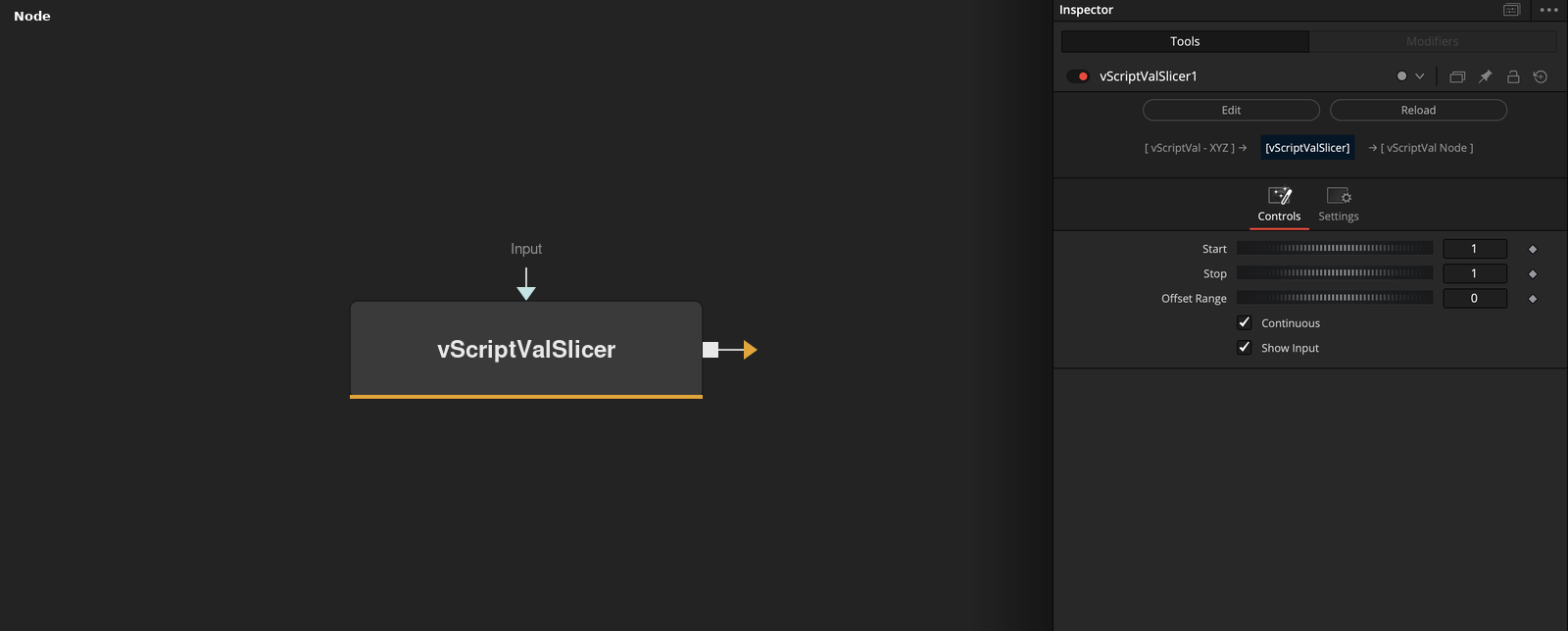

vScriptValSlicer

Trim the start and end of single or multi-dimensional arrays

Mograph / ScriptValScriptValArrayJSON

Parameters

Parameter	Type	Default	Description
Input	DATATYPE	—	Data to process.
Start	Integer	1	First entry of the range.
Stop	Integer	1	Last entry of the range.
Offset Range	Integer	0	Added to Start and Stop.
Continuous	Integer	1.0	Wraps the range around the end of the array.

+1 more parameters

Parameter	Type	Default	Description
Show Input	Integer	1.0	Shows the Start, Stop and Offset Range input socket on the node.

Example Connections

Example 1

vScriptValCircularPoints.Output -> vScriptValSlicer.Input
    vScriptValSlicer.Output -> vScriptValCameraProjection.ScriptVal
    vScriptValCameraProjection.Output -> vScriptValShapeRender.ScriptValPoint
    Background.Output -> vScriptValShapeRender.Input
    vScriptValShapeText.OutputValShape -> vScriptValShapeRender.ScriptValShape

Related Nodes

vScriptValCircularPointsvScriptValCameraProjectionvScriptValShapeRendervScriptValShapeText
