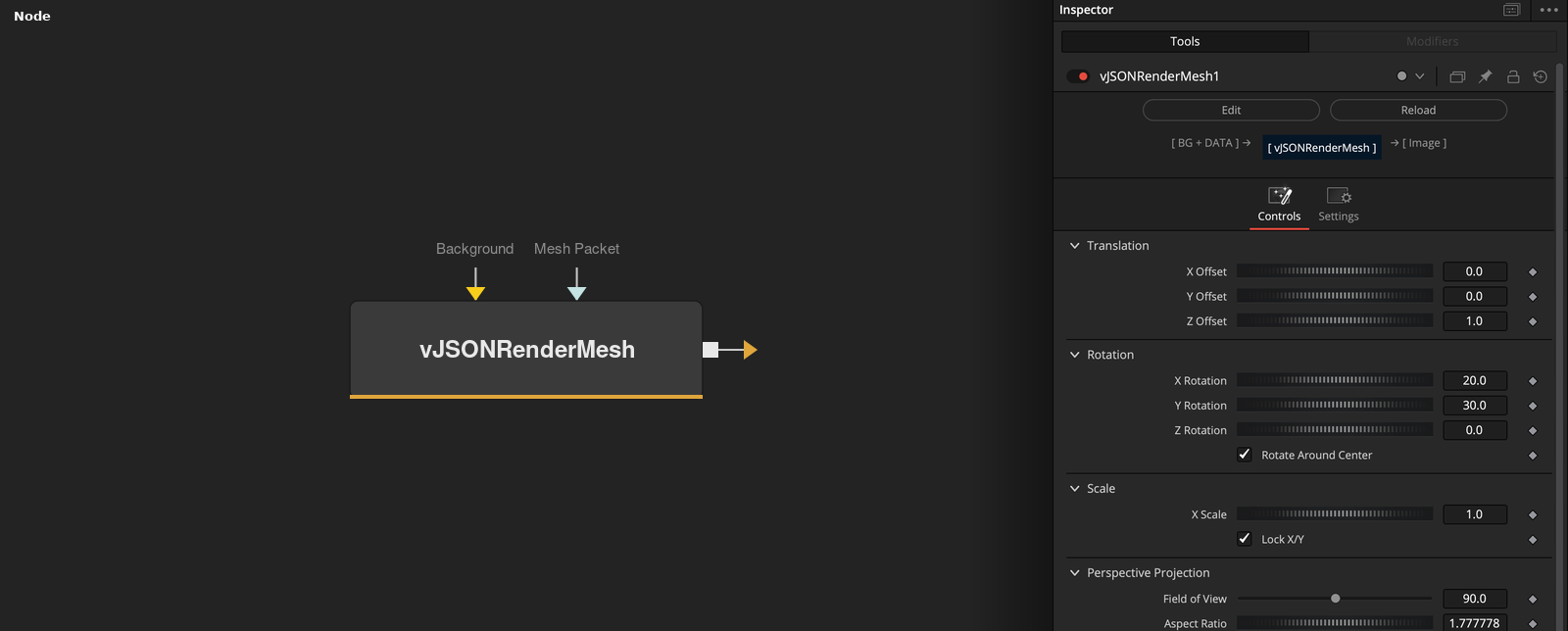

vJSONRenderMesh
Render a sweep mesh packet (vertices + faces) from vJSONRenderSweepProfile as a shaded 2D image.
Mograph / JSONJSONScriptValArray
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| X Offset | Float | 0 | Moves the model along X. |
| Y Offset | Float | 0 | Moves the model along Y. |
| Z Offset | Float | 1.0 | Moves the model along Z, away from the camera. |
| X Rotation | Float | 20 | Rotation around X in degrees. |
| Y Rotation | Float | 30 | Rotation around Y in degrees. |
+26 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Z Rotation | Float | 0 | Rotation around Z in degrees. |
| Rotate Around Center | Integer | 1 | Rotates around the model center. |
| Lock X/Y | Integer | 1 | Uses one scale value for X and Y. |
| X Scale | Float | 1.0 | Scale of the model. |
| Y Scale | Float | 1.0 | Scale along Y. Shown when Lock X/Y is off. |
| Field of View | Float | 90.0 | Perspective field of view in degrees. |
| Aspect Ratio | Float | 16 / 9 | Aspect ratio used by the projection. |
| Show Fill | Integer | 1 | Draws the filled surface. |
| Show Wireframe | Integer | 1 | Draws the wireframe. |
| Wire Width | Float | 0.0015 | Width of the wireframe lines. |
| Flat Shading | Integer | 1 | Uses one shade per face. |
| Ambient | Float | 0.15 | Minimum brightness. |
| Light X | Float | 0.6 | Light direction X. |
| Light Y | Float | 0.8 | Light direction Y. |
| Light Z | Float | -0.5 | Light direction Z. |
| Shade Steps | Integer | 24 | Number of shading levels. |
| Red | Float | 0.1 | Color for the fill. |
| Green | Float | 0.7 | Color for the fill. |
| Blue | Float | 1.0 | Color for the fill. |
| Alpha | Float | 1.0 | Color for the fill. |
| Red | Float | 0.0 | Color for the fill. |
| Green | Float | 1.0 | Color for the fill. |
| Blue | Float | 1.0 | Color for the fill. |
| Alpha | Float | 1.0 | Color for the fill. |
| Background | Image | — | — |
| Mesh Packet | INPUT_DATATYPE | — | — |
