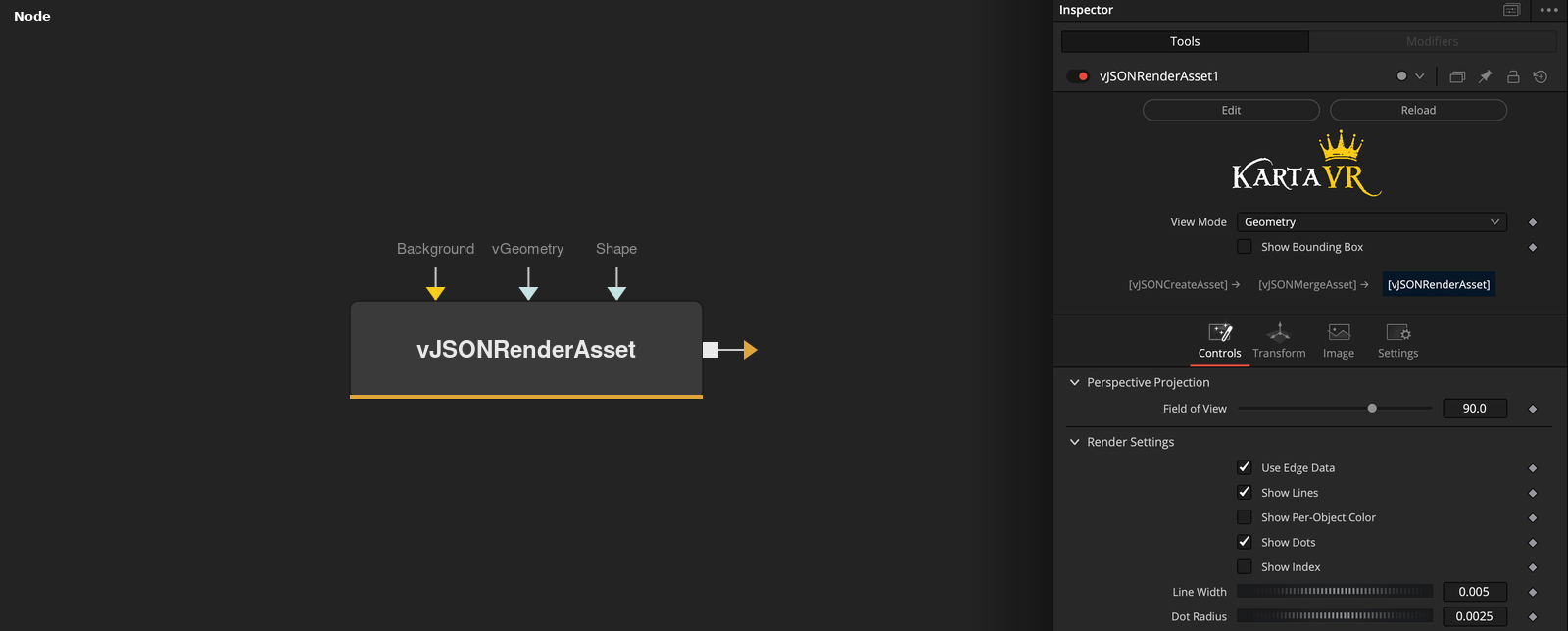

vJSONRenderAsset

Render 3D wireframe from a JSON text payload of vGeometry mesh data.

Mograph / JSONJSONScriptValArray

Parameters

Parameter	Type	Default	Description
View Mode	Dropdown	Geometry	Geometry or UV Snapshot.
Show Bounding Box	Integer	0	Draws the bounding box of the model.
Field of View	Float	90.0	Perspective field of view in degrees.
Screen aspect ratio	Float	16 / 9	—
Near clipping plane	Float	0.1	—

+45 more parameters

Parameter	Type	Default	Description
Far clipping plane	Float	1000	—
Use Edge Data	Integer	1	Draws the edge list instead of connecting points in order.
Show Lines	Integer	1	Draws the lines.
Show Per-Object Color	Integer	0.0	Uses the color stored with each object.
Show Dots	Integer	1	Draws a dot at each point.
Show Index	Integer	0	Draws the index number at each point.
Line Width	Float	0.005	Width of the lines.
Dot Radius	Float	0.0025	Radius of the dots.
Red	Float	0.466	Color for the line.
Green	Float	0.847	Color for the line.
Blue	Float	0.588	Color for the line.
Alpha	Float	1.0	Color for the line.
Dot Sides	Integer	4	Number of sides of each dot.
Dot Width	Float	0.0	Outline width of the dots.
Hide Default Dots	Integer	0	Hides the built-in dots.
Hide Custom Dots	Integer	0	Hides the custom dot shapes.
Render Outline Dots	Integer	0	Draws the dots as outlines.
Scale Dots	Float	1	Scales the dots.
Red	Float	1.0	Color for the line.
Green	Float	1.0	Color for the line.
Blue	Float	0.56	Color for the line.
Alpha	Float	1.0	Color for the line.
Text Size	Float	0.02	Size of the index text.
Text Style	Dropdown	Bold	Regular or Bold.
Red	Float	1.0	Color for the line.
Green	Float	1	Color for the line.
Blue	Float	1	Color for the line.
Alpha	Float	1.0	Color for the line.
Fade Color	Float	0.1	Fades the color with distance.
Filter	Dropdown	Gaussian	—
Soft Edge	Float	0	—
Line Type	Dropdown	Solid	Solid, Dash, Dot, Dash Dot, or Dash Dot Dot.
Join Type	Dropdown	2.0	Bevel or Round corners.
X Offset	Float	—	Moves the model along X.
Y Offset	Float	—	Moves the model along Y.
Z Offset	Float	1.0	Moves the model along Z, away from the camera.
X Rotation	Float	—	Rotation around X in degrees.
Y Rotation	Float	—	Rotation around Y in degrees.
Z Rotation	Float	—	Rotation around Z in degrees.
Lock X/Y	Integer	1	Uses one scale value for X and Y.
X Scale	Float	1.0	Scale of the model.
Y Scale	Float	1.0	Scale along Y. Shown when Lock X/Y is off.
Input	Image	—	Image that the result is drawn onto.
vGeometry	Text	—	—
Shape	ScriptVal	—	—
