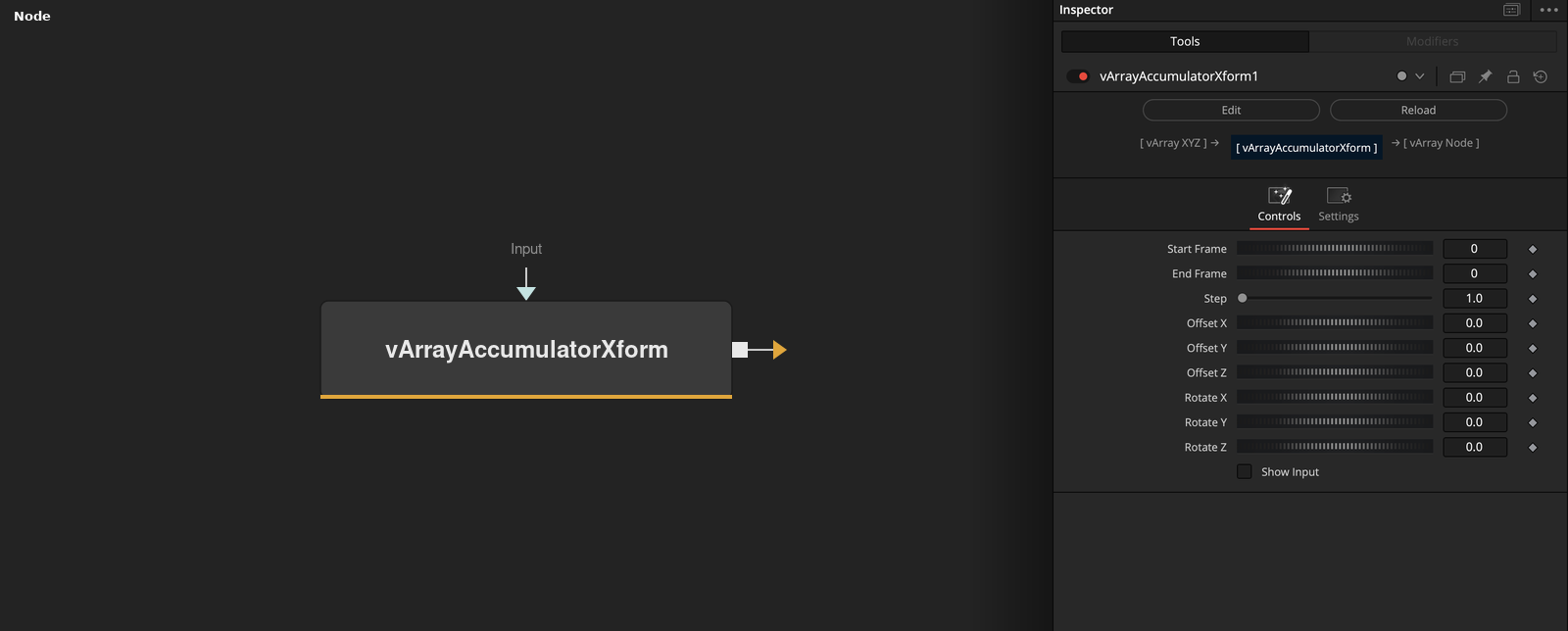

vArrayAccumulatorXform
Temporally concatenate array elements
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Input | DATATYPE | — | Data to process. |
| Start Frame | Integer | 0 | First frame to read. |
| End Frame | Integer | 0 | Last frame to read. |
| Step | Float | 1 | Frame increment between samples. |
| Offset X | Float | 0 | — |
+6 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Offset Y | Float | 0 | — |
| Offset Z | Float | 0 | — |
| Rotate X | Float | 0 | — |
| Rotate Y | Float | 0 | — |
| Rotate Z | Float | 0 | — |
| Show Input | Integer | 0.0 | Shows the frame range controls. |
Example Connections
- Example 1
vArrayTextFont.Output -> vArrayAccumulatorXform.ArrayA
vNumberCompRenderStart.Output -> vArrayAccumulatorXform.StartFrame
vNumberCompRenderEnd.Output -> vArrayAccumulatorXform.EndFrame
vArrayAccumulatorXform.Output -> vArrayUnPacker.ArrayA
vArrayUnPacker.OutputArray_1 -> vArrayCameraProjection.ArrayA
vArrayCameraProjection.Output -> vArrayShapeRender.ArrayPoint
Background.Output -> vArrayShapeRender.Input
