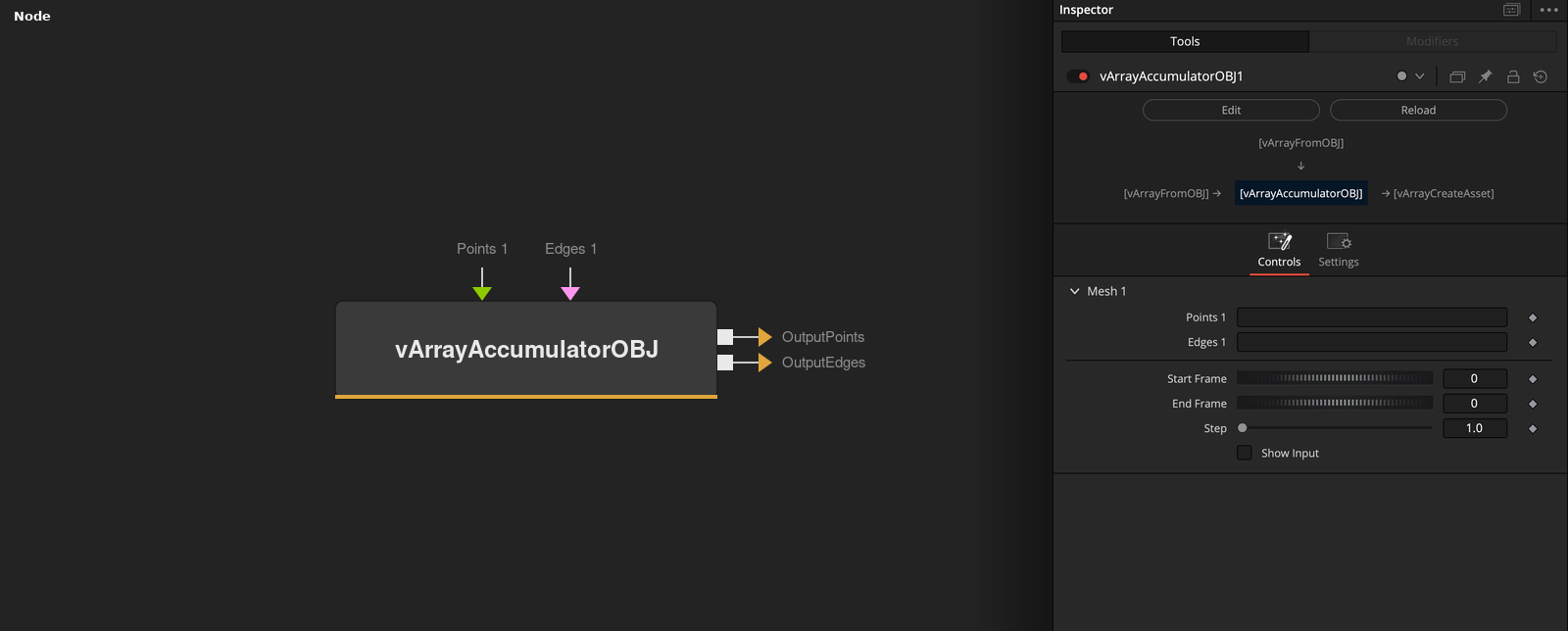

vArrayAccumulatorOBJ
Temporally concatenate Wavefront OBJ geometry with edge and point array elements
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Points 1 | DATATYPE | — | — |
| Edges 1 | DATATYPE | — | — |
| Start Frame | Integer | 0 | First frame to read. |
| End Frame | Integer | 0 | Last frame to read. |
| Step | Float | 1 | Frame increment between samples. |
+1 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Show Input | Integer | 0.0 | Shows the frame range controls. |
Example Connections
- Example 1
vArrayFromOBJ.Edges -> vArrayAccumulatorOBJ.Edges1
vArrayFromOBJ.Points -> vArrayMath.ArrayA
vMatrixCreateTRS1.Output -> vArrayMath.ArrayB
vArrayMath.Operation = "Matrix Multiply"
vArrayMath.Output -> vArrayAccumulatorOBJ.Points1
vArrayAccumulatorOBJ.OutputEdges -> vArrayShapeRender.ArrayEdge
vArrayAccumulatorOBJ.OutputPoints -> -> vArrayCameraProjection.ArrayA
vArrayCameraProjection.Output -> vArrayShapeRender.ArrayPoint
Background.Output -> vArrayShapeRender.Input
