vPointLength

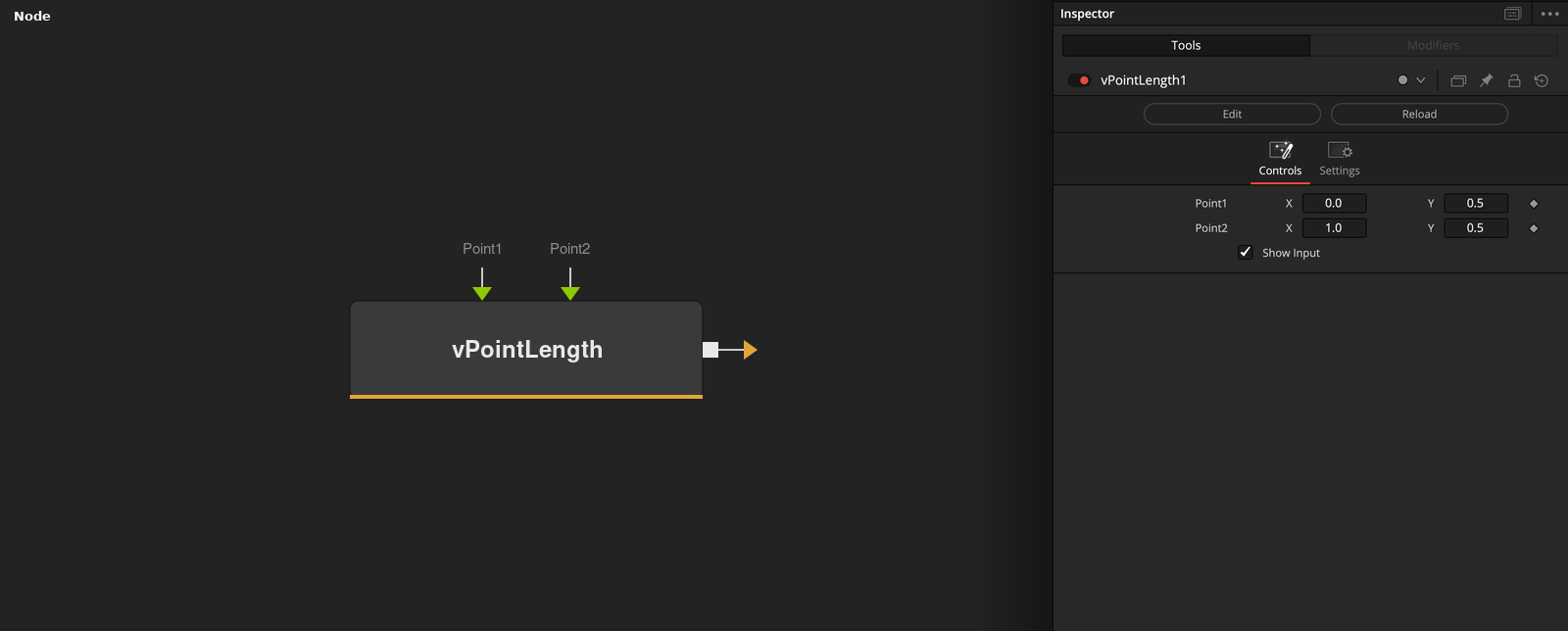

Measure the distance between two Fusion Point objects The output from this node is a Number datatype that reports the distance between Point1 and Point2. If you have an image loaded in the viewer window, and then select the vPointLength node to edit its attributes in the Inspector tab, you will see the Point1 and Point2 locator handle overlays onscreen.
Core / PointPoint
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Point1 | Point | — | First point. |
| Point2 | Point | — | Second point — Output is the distance between Point1 and Point2. Selecting this node shows both locator handles overlaid in the viewer. |
| Show Input | Integer | 1.0 | Reveals the wires for the Point1/Point2 connections in the Flow view. |
