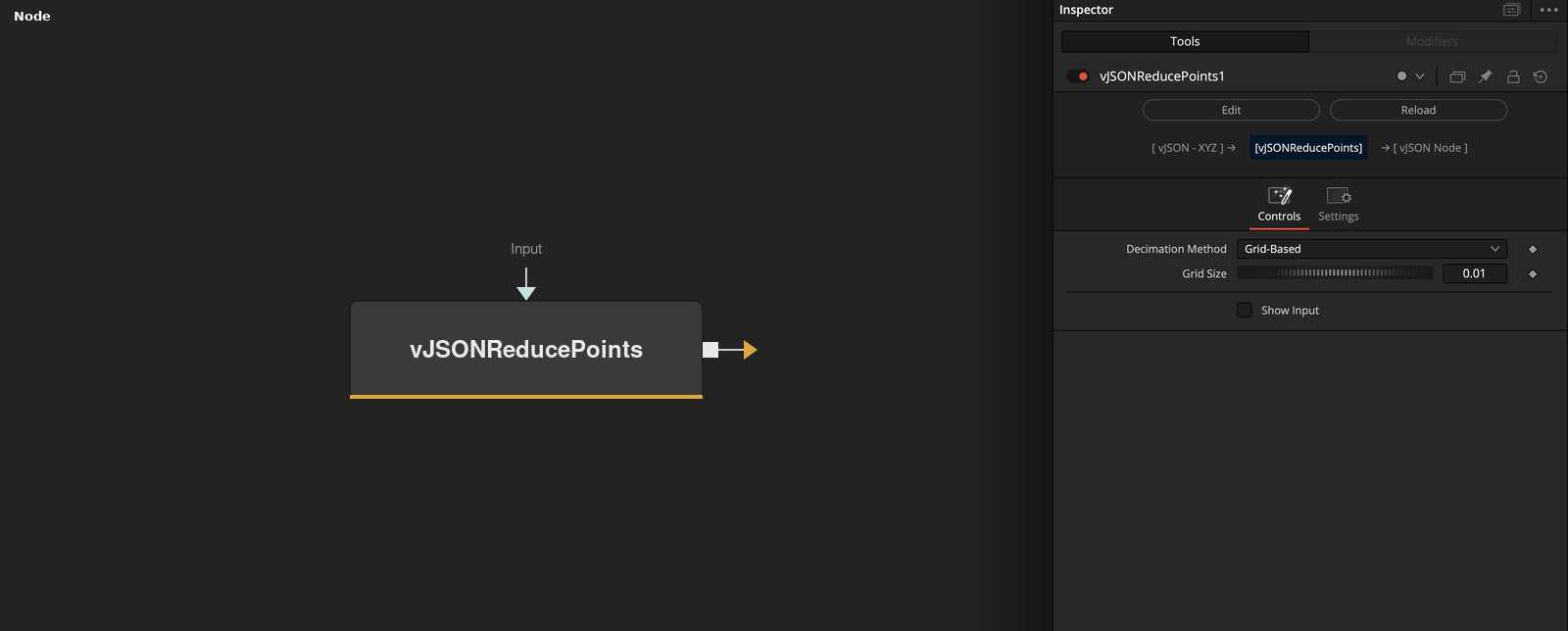

vJSONReducePoints

Reduce points Operations on an Array Decimation Method options include: - Grid-Based - Random Sampling - Curvature-Based (SLOW)

Mograph / JSONJSONScriptValArray

Parameters

Parameter	Type	Default	Description
Decimation Method	Dropdown	Grid-Based	Grid-Based, Random Sampling, or Curvature-Based (slow).
Grid Size	Float	0.01	Cell size of the grid. Shown for Grid-Based and Curvature-Based.
Target Count	Float	3.0	Number of points kept. Shown for Random Sampling and Curvature-Based.
Seed	Integer	0	—
Neighborhood Size	Float	0.2	Search radius for the curvature pass. Shown for Curvature-Based.

+2 more parameters

Parameter	Type	Default	Description
Show Input	Integer	0.0	Shows the three parameter input socket on the node.
Input	DATATYPE	—	Data to process.

Example Connections

Example 1

vJSONPointsOnSphere.Output -> vJSONReducePoints.ArrayA
    vJSONReducePoints.Output -> vJSONCameraProjection.ArrayA
    vJSONCameraProjection.Output -> vJSONShapeRender.JSONPoint
    Background.Output -> vJSONShapeRender.Input

Related Nodes

vJSONPointsOnSpherevJSONCameraProjectionvJSONShapeRender
