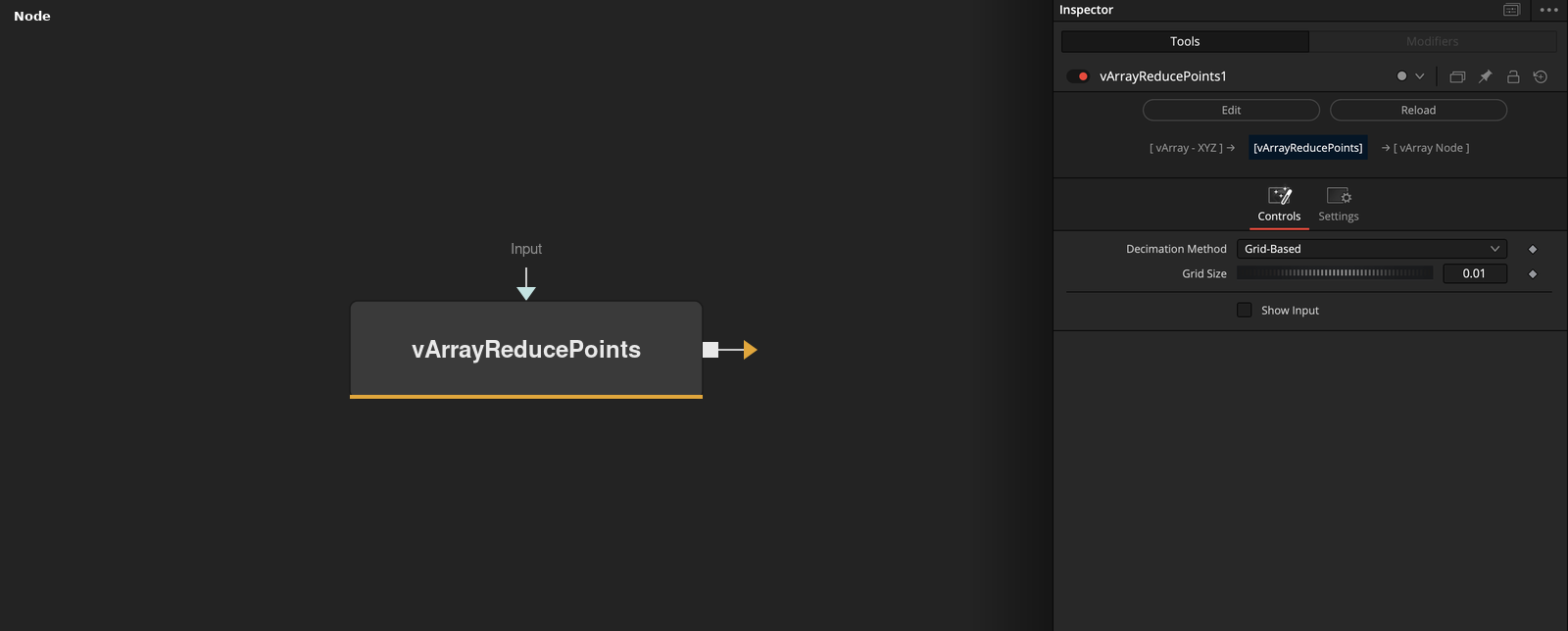

vArrayReducePoints
Reduce points Operations on an Array Decimation Method options include: - Grid-Based - Random Sampling - Curvature-Based (SLOW)
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Decimation Method | Dropdown | Grid-Based | Grid-Based, Random Sampling, or Curvature-Based (slow). |
| Grid Size | Float | 0.01 | Cell size of the grid. Shown for Grid-Based and Curvature-Based. |
| Target Count | Float | 3.0 | Number of points kept. Shown for Random Sampling and Curvature-Based. |
| Seed | Integer | 0 | — |
| Neighborhood Size | Float | 0.2 | Search radius for the curvature pass. Shown for Curvature-Based. |
+2 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Show Input | Integer | 0.0 | Shows the three parameter input socket on the node. |
| Input | DATATYPE | — | Data to process. |
Example Connections
- Example 1
vArrayPointsOnSphere.Output -> vArrayReducePoints.ArrayA
vArrayReducePoints.Output -> vArrayCameraProjection.ArrayA
vArrayCameraProjection.Output -> vArrayShapeRender.ArrayPoint
Background.Output -> vArrayShapeRender.Input
