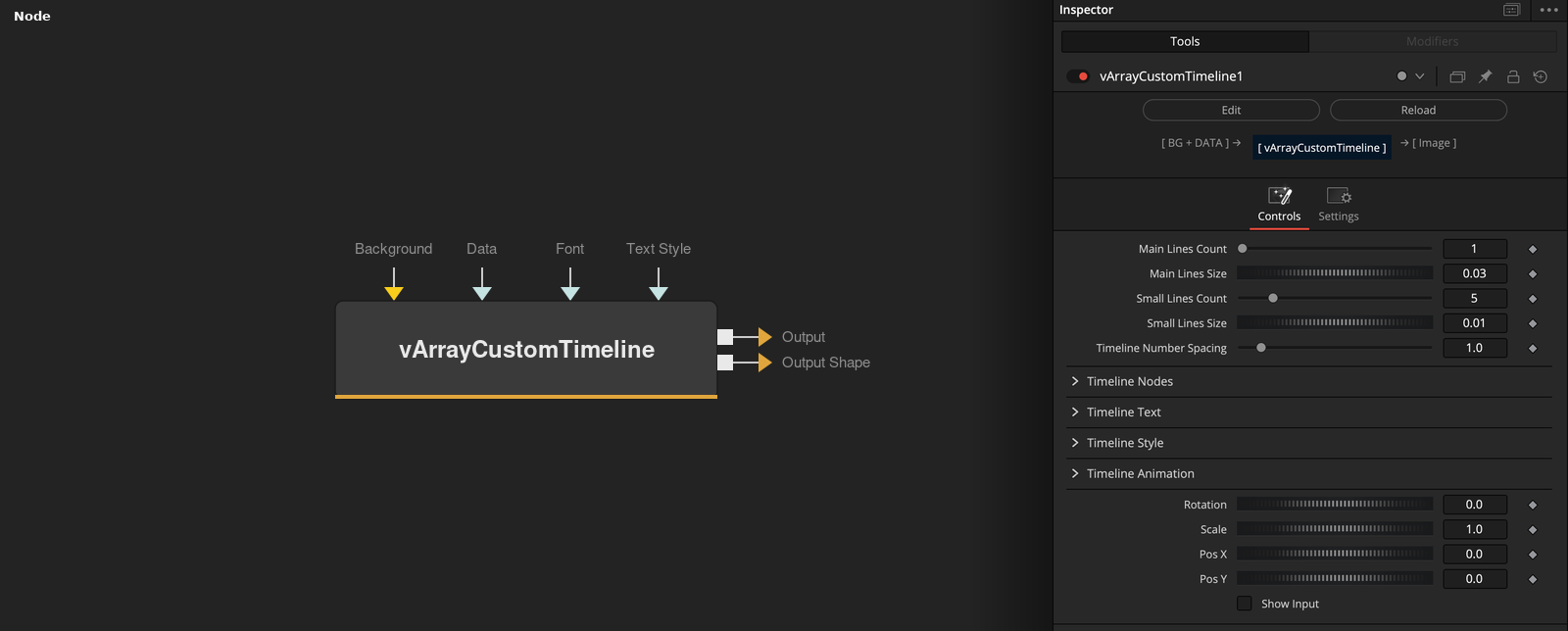

vArrayCustomTimeline
Stylized timeline with major and minor tick marks
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Main Lines Count | Integer | 1.0 | Number of main sections. |
| Main Lines Size | Float | 0.03 | Height of the main tick marks. |
| Small Lines Count | Integer | 5.0 | Small divisions per main section. |
| Small Lines Size | Float | 0.01 | Height of the small tick marks. |
| Timeline Number Spacing | Float | 1.0 | Distance between main tick marks. |
+46 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Show Timeline nodes | Float | 0.0 | Draws a polygon at each main tick. |
| Timeline Nodes Sides | Integer | 5.0 | Sides of the node polygon. |
| Timeline Nodes Size | Float | 0.01 | Size of the node polygon. |
| Timeline Nodes Offset | Float | 1.0 | Vertical offset of the nodes. |
| Timeline Nodes Rotation | Float | 0.0 | Rotation of the node polygon in degrees. |
| Show Timeline font | Float | 0.0 | Draws the numbers at the main ticks. |
| Number Start At | Integer | 0 | — |
| Number Step | Float | — | Increment between numbers. |
| Show decimals | Integer | 0.0 | When on, numbers are rounded down to whole values. |
| Font | Text | — | Font family of the numbers. |
| Text Style | Text | — | Font style of the numbers. |
| Text Size | Float | 0.03 | Size of the numbers. |
| Text Y Offset | Float | 1.0 | Vertical offset of the numbers. |
| Text Rotate | Float | 0.0 | Rotation of the numbers in degrees. |
| Red | Float | 1.0 | — |
| Green | Float | 0.9 | — |
| Blue | Float | 0.6 | — |
| Thickness | Float | 0.001 | Line thickness. |
| Type | Dropdown | Solid | Solid, Dash, Dot, Dash Dot, or Dash Dot Dot. |
| Red | Float | 1.0 | — |
| Green | Float | 0.9 | — |
| Blue | Float | 0.6 | — |
| Red | Float | 1.0 | — |
| Green | Float | 0.9 | — |
| Blue | Float | 0.6 | — |
| Red | Float | 1.0 | — |
| Green | Float | 0.9 | — |
| Blue | Float | 0.6 | — |
| Animation | Dropdown | None | None, Auto, or Manual pointer animation. |
| Animation Speed | Float | 0.5 | Pointer speed. Shown for Auto. |
| Animation Offset | Integer | 0 | Pointer position. Shown for Manual. |
| Loop Animation | Integer | 1.0 | Wraps the pointer back to the start. |
| Pointer Shape | Dropdown | None | None, Arrow, or Custom. |
| Arrow Y Pos | Float | 0.0 | Vertical position of the pointer. |
| Arrow Rotation | Float | 0.0 | Rotation of the pointer in degrees. |
| Arrow Scale | Float | 1.0 | Scale of the pointer. |
| Red | Float | 1.0 | — |
| Green | Float | 0.9 | — |
| Blue | Float | 0.6 | — |
| Timeline Rotation | Float | 0 | Rotation of the whole timeline in degrees. |
| Timeline Scale | Float | 1.0 | Scale of the whole timeline. |
| Timeline PosX | Float | 0.0 | Position of the timeline. |
| Timeline PosY | Float | 0.0 | Position of the timeline. |
| Show Input | Integer | 0.0 | Draws over a copy of the input image instead of a transparent image. |
| Input | Image | — | Image that the result is drawn onto. |
| Data | DATATYPE | — | Data to process. |
