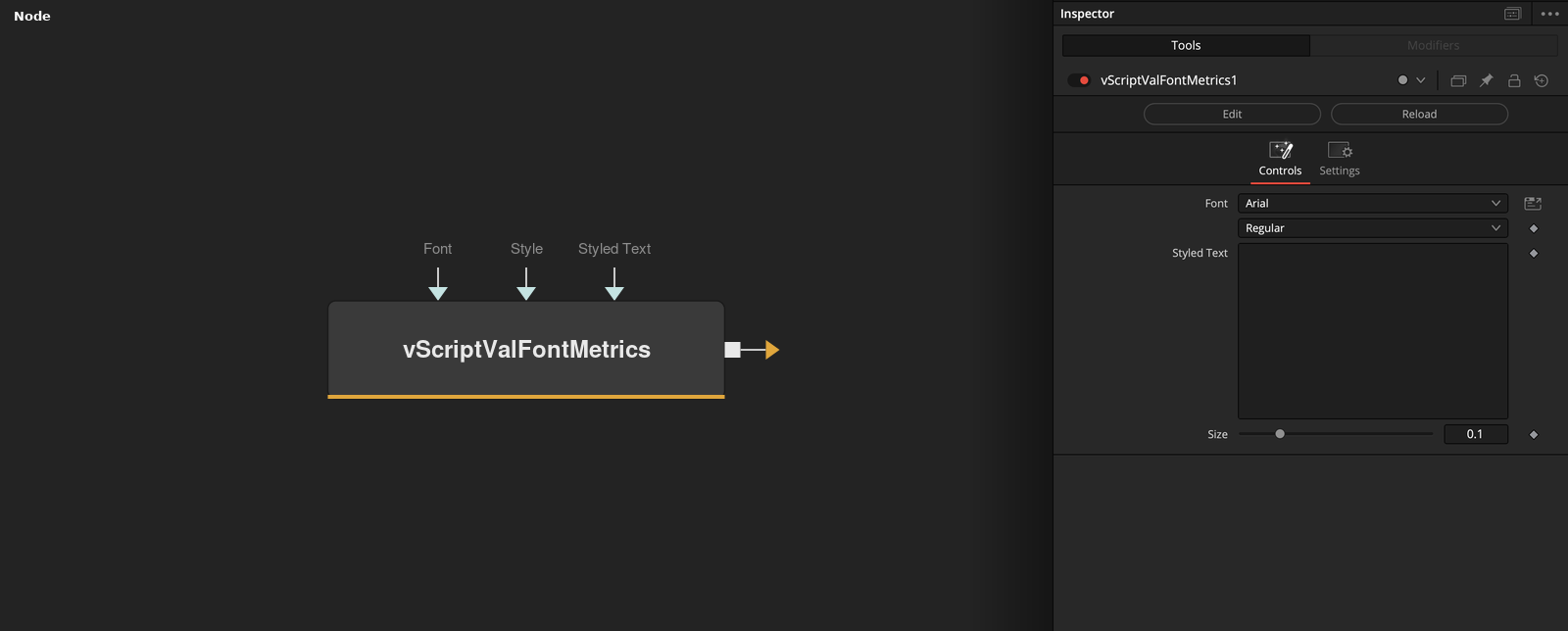

vScriptValFontMetrics
Return font measurements as a Fusion ScriptVal object Sample output from the "vScriptValFontMetrics" node when formatted as text based Lua table output looks like: { FontMetrics = { TypeName = "TextStyleFontMetrics", CharWidthAverage = 0, UnderlineThickness = 123, TextExternalLeading = 0, TextInternalLeading = 0.0232686980609418, TypeNamePtr = "TextStyleFontMetrics*", TextDescent = 0.0175623268698061, Scale = 3610, TextAscent = 0.0624376731301939, FontSize = 0.1, CharWidthSpace = 0.0189196675900277 }, Font = "Arial Black", Text = "Hello", Style = "Regular", Size = 0.1 }
Core / ScriptValScriptVal
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Font | Text | — | Font family name to measure, e.g. Arial Black. |
| Style | Text | — | Font style/weight, e.g. Regular or Bold. |
| Styled Text | Text | — | Sample text the metrics are measured against. |
| Size | Float | 0.1 | Font size used for the measurement. |
