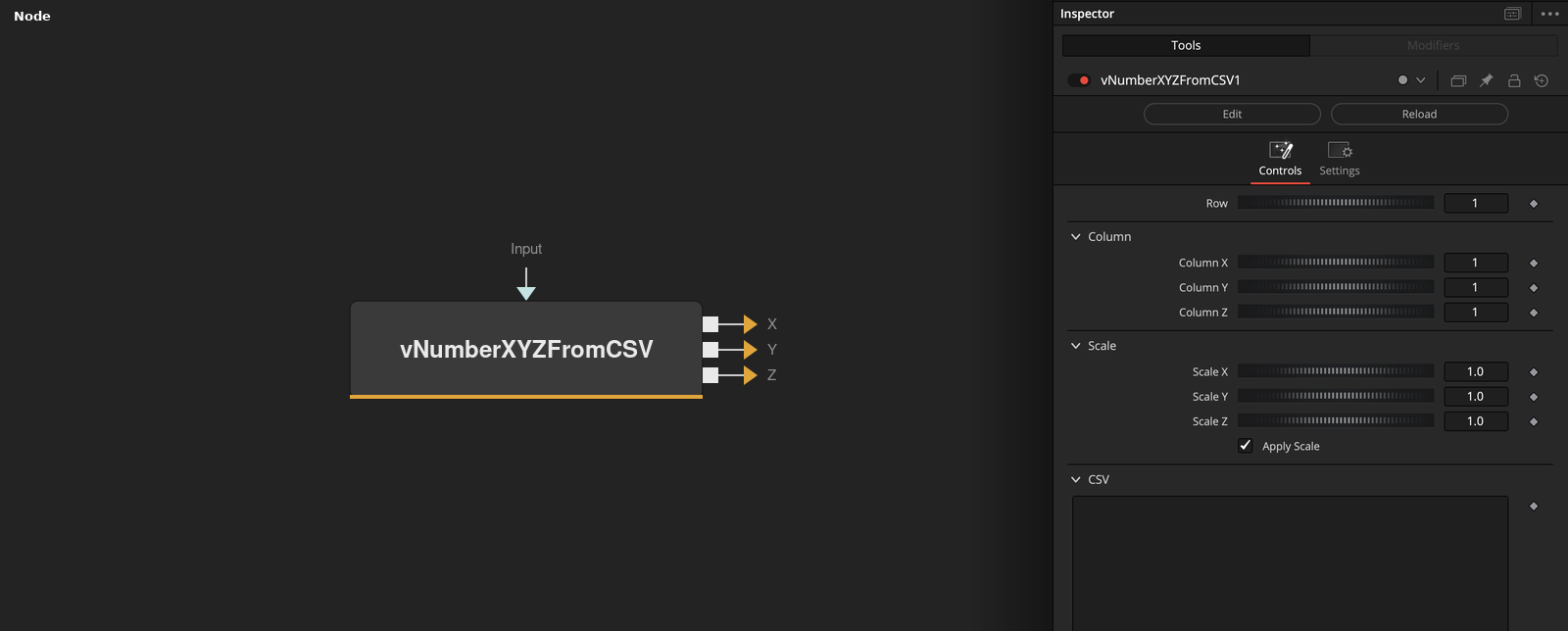

vNumberXYZFromCSV
Creates a set of XYZ Fusion Number objects by extracting three cells from a CSV formatted block of text
Core / NumberNumber
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Row | Integer | 1 | CSV line number to read all three values from. |
| Column X | Integer | 1 | Comma-separated field on that line used for the X value. |
| Column Y | Integer | 1 | Comma-separated field on that line used for the Y value. |
| Column Z | Integer | 1 | Comma-separated field on that line used for the Z value. |
| Scale X | Float | 1 | Multiplier applied to the X value when Apply Scale is on. |
+8 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Scale Y | Float | 1 | Multiplier applied to the Y value when Apply Scale is on. |
| Scale Z | Float | 1 | Multiplier applied to the Z value when Apply Scale is on. |
| Apply Scale | Integer | 1.0 | Enables the Scale X/Y/Z multipliers. |
| Input | Text | — | The CSV-formatted block of text to read from. |
| Ignore Header Row | Integer | 1.0 | Offsets Row by 1 so a labelled header line is skipped. |
| Display Lines | Integer | 10 | Number of lines shown in the Input text box in the Inspector. |
| Wrap Lines | Integer | 0.0 | Wraps long lines in the Input text box instead of scrolling horizontally. |
| Show Input | Integer | 1.0 | Reveals the wire for the Input connection in the Flow view. |
