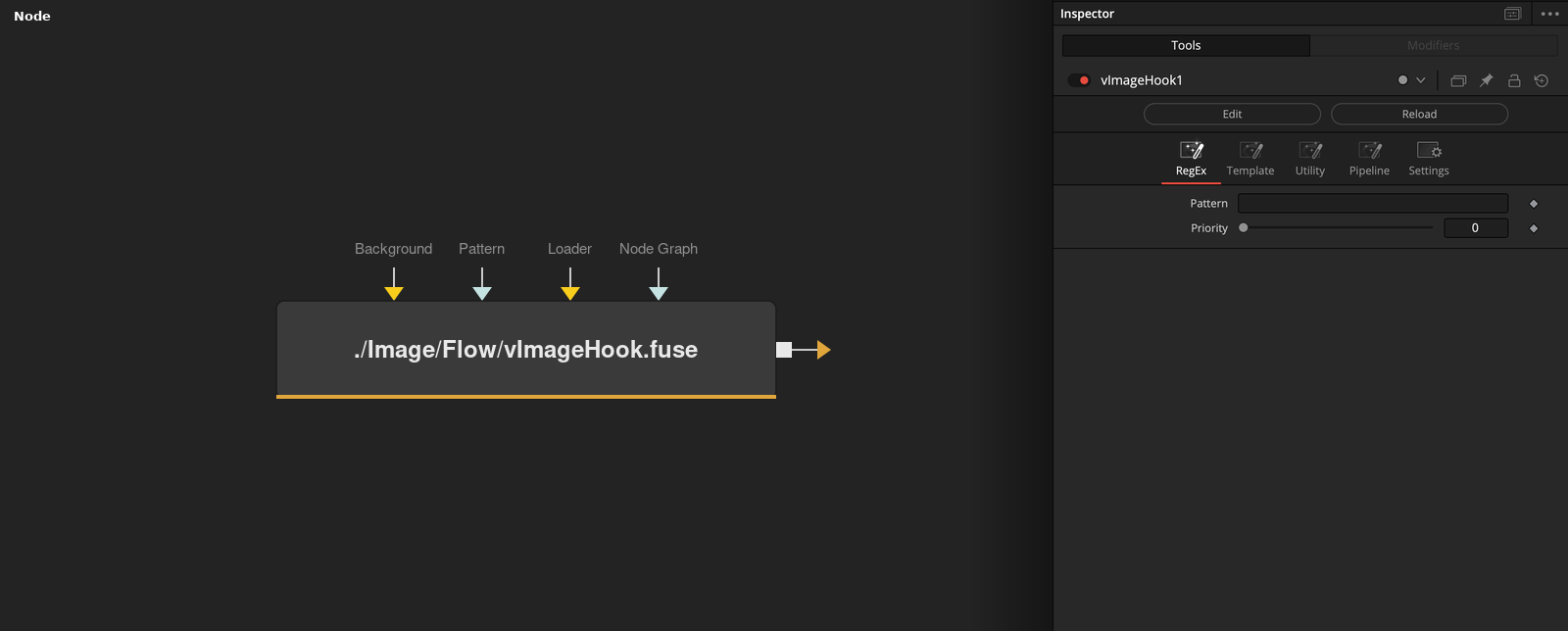

vImageHook
The vImageHook node in the Vonk Ultra Core Image toolkit.
Core / ImageImage
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Input | DATATYPE | — | Image passed through unchanged — connect this into the comp so the hook is evaluated. |
| Pattern | Text | — | Regular expression matched against Loader filenames — any matching Loader triggers this hook. |
| Priority | Integer | 0 | Evaluation order when multiple ImageHooks match the same Loader — lower runs first. |
| Loader | Image | — | Optional template Loader node whose settings new matches should inherit. |
| Show Loader | Integer | 0.0 | Reveals the wire for the Loader connection in the Flow view. |
+7 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Node Graph | Text | — | Name of a saved node subgraph (macro/group) to insert after any Loader matching Pattern. |
| Always Apply | Integer | 0.0 | Applies Node Graph even to Loaders that already exist in the comp, not just newly created ones. |
| Show Input | Integer | 1.0 | Reveals the wire for the Input connection in the Flow view. |
| Get Color | Float | — | Copies the connected node's tile and text colour onto this node. |
| Get Name | Float | — | Renames this node to match its connected source node, for easy identification. |
| Get Source | Float | — | Selects and activates the connected source node in the flow — a quick way to jump to it. |
| Process | Integer | 1.0 | Enables this hook. Turn off to temporarily disable it without disconnecting it. |
