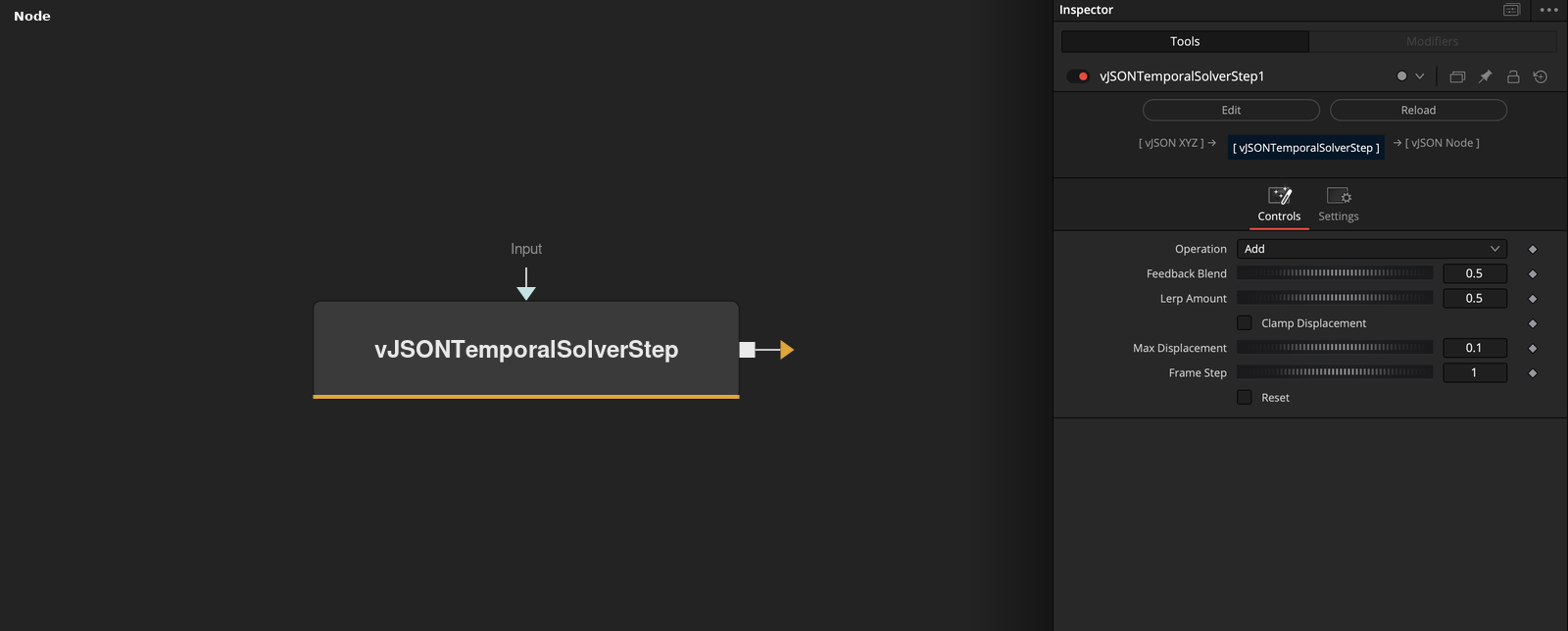

vJSONTemporalSolverStep
Temporal feedback solver step for JSON arrays.
Mograph / JSONJSONScriptValArray
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Operation | Dropdown | Add | Add, Multiply or Lerp. |
| Feedback Blend | Float | 0.5 | 0 returns the current value, 1 returns the combined result. |
| Lerp Amount | Float | 0.5 | Mix used when Operation is Lerp. |
| Clamp Displacement | Integer | 0 | Limits how far the combined value may move from the current value. |
| Max Displacement | Float | 0.1 | Largest allowed change per value. Used when Clamp Displacement is on. |
+3 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Frame Step | Integer | 1 | Frames back to combine with. |
| Reset | Integer | 0 | Ignores the earlier frame. |
| Input | DATATYPE | — | Data to process. |
