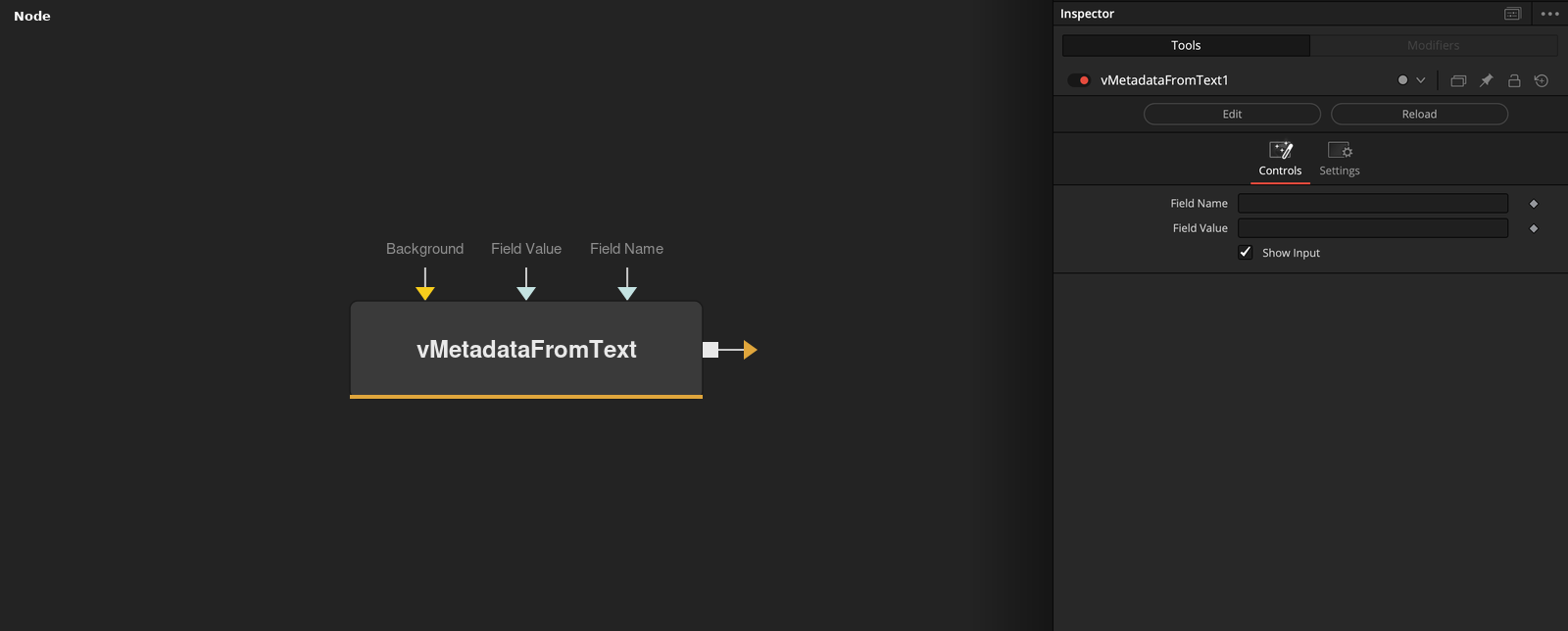

vMetadataFromText
Creates a Fusion image with metadata added from text This node is similar to the SetMetadata.fuse with the addition of input connections on the node that accepts a Text data type for the "Field Name", and "Field Value". A metadata example for Fusion Viewer based Stereo3D "Over/Under" image content is: Field Name: Stereo Field Value: {Method = "vstack"} A metadata example for Fusion Viewer based Stereo3D "Side by Side" image content is: Field Name: Stereo Field Value: {Method = "hstack"} A metadata example for Fusion Viewer window based 360VR "Latitude/Longitude" image projection content is: Field Name: Pano Field Value: {Format = "LatLong"}
Core / MetaMeta
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Input | Image | — | Image the new metadata field is attached to. |
| Field Name | Text | — | Metadata key to set, e.g. Stereo or Pano. |
| Field Value | Text | — | Value to store under Field Name, as a Lua table literal for structured metadata — e.g. {Method = "vstack"} for over/under stereo, {Method = "hstack"} for side-by-side stereo, or {Format = "LatLong"} for 360VR latitude/longitude. |
| Show Input | Integer | 1.0 | Reveals the wire for the Input connection in the Flow view. |
