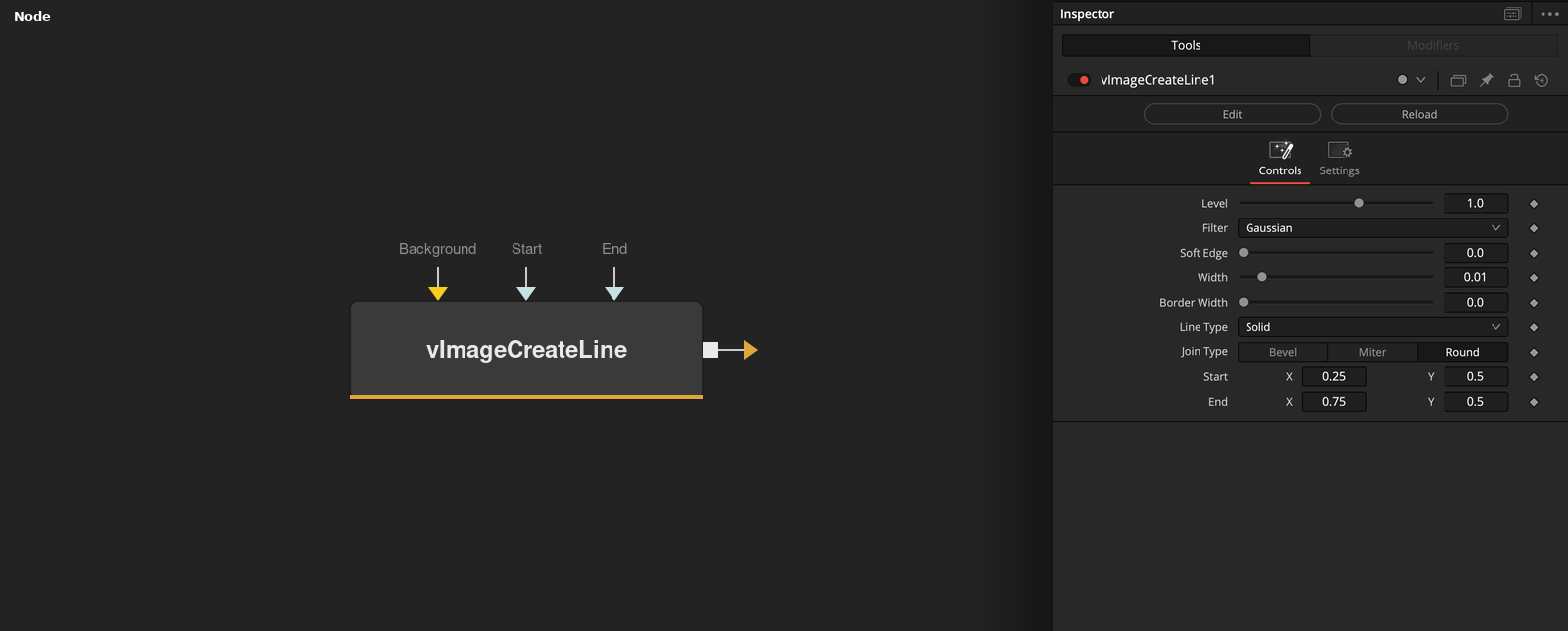

vImageCreateLine

Creates a Line Shape object

Core / ImageImage

Parameters

Parameter	Type	Default	Description
Level	Float	1	Overall brightness/opacity multiplier for the line.
Filter	Dropdown	Gaussian	Anti-aliasing filter used to soften the line's edges: Box, Bartlett, Multi-box, or Gaussian.
Soft Edge	Float	0	Additional edge softness, blended on top of the Filter setting.
Width	Float	0.01	Line thickness, as a fraction of frame size.
Border Width	Float	0.0	Width of an additional outline drawn around the line.

+5 more parameters

Parameter	Type	Default	Description
Line Type	Dropdown	Solid	Dash pattern for the line: Solid, Dash, Dot, Dash Dot, or Dash Dot Dot.
Join Type	Dropdown	Round	Corner style where line segments meet: Bevel, Miter, or Round.
Start	Point	—	Start position of the line, in screen coordinates.
End	Point	—	End position of the line, in screen coordinates.
Input	Image	—	Background image the line is drawn onto.
