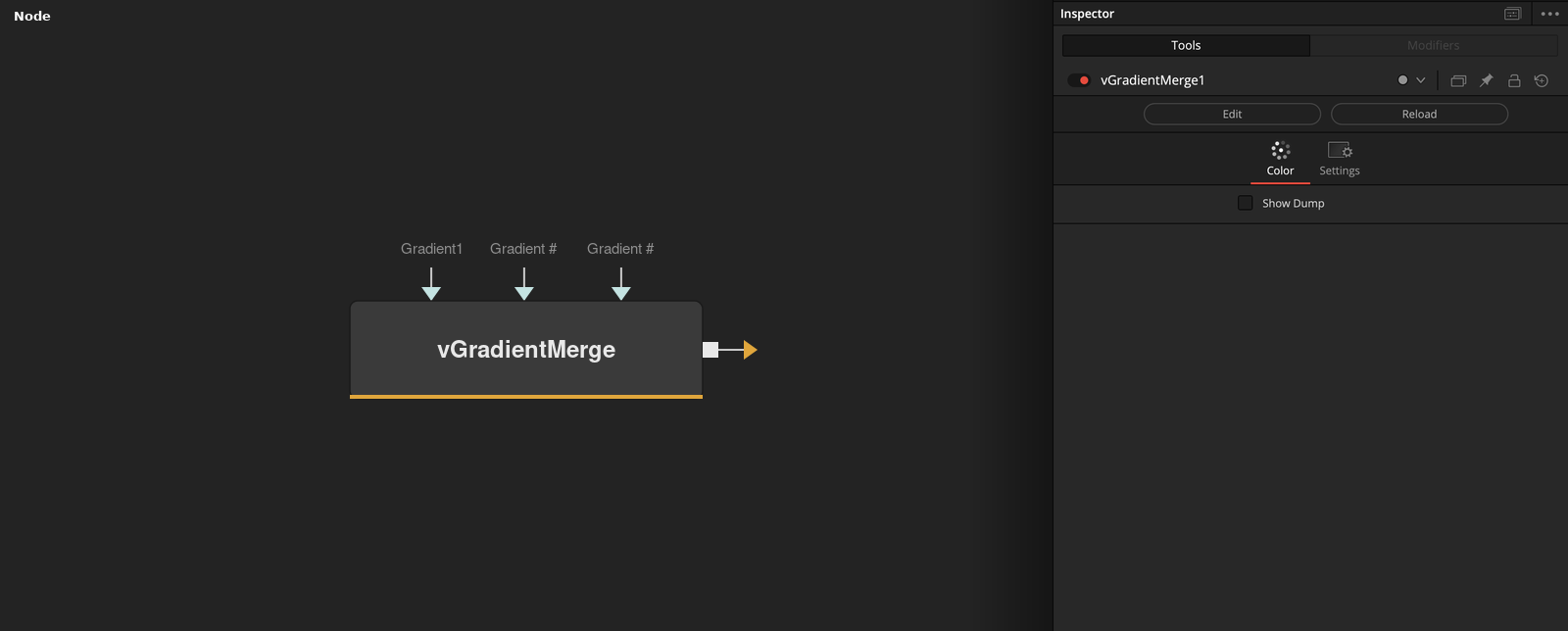

vGradientMerge
Merge several Gradients into a single output
Core / GradientGradient
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Which | Integer | — | Internal control tracking how many Gradient inputs are currently connected. Not meant to be set manually — every connected input is merged, regardless of this value. |
| Gradient1 | Gradient | — | The first gradient to merge. Connecting it reveals Gradient2 for the next one, and so on. |
| Show Dump | Integer | 0.0 | Prints the merged gradient to the console each frame. |
| "Gradient" .. i | Gradient | — | Additional gradient to merge, added automatically as each prior input gets wired — appears in the UI as Gradient2, Gradient3, and so on. (The literal "Gradient" .. i label is a known display quirk in how this dynamically-generated input's name is parsed for these docs, not something visible in Fusion itself.) |
| "Gradient" .. (inp_nr + 1) | Gradient | — | The next available gradient slot, added automatically once the one before it is connected. Same display quirk as above. |
